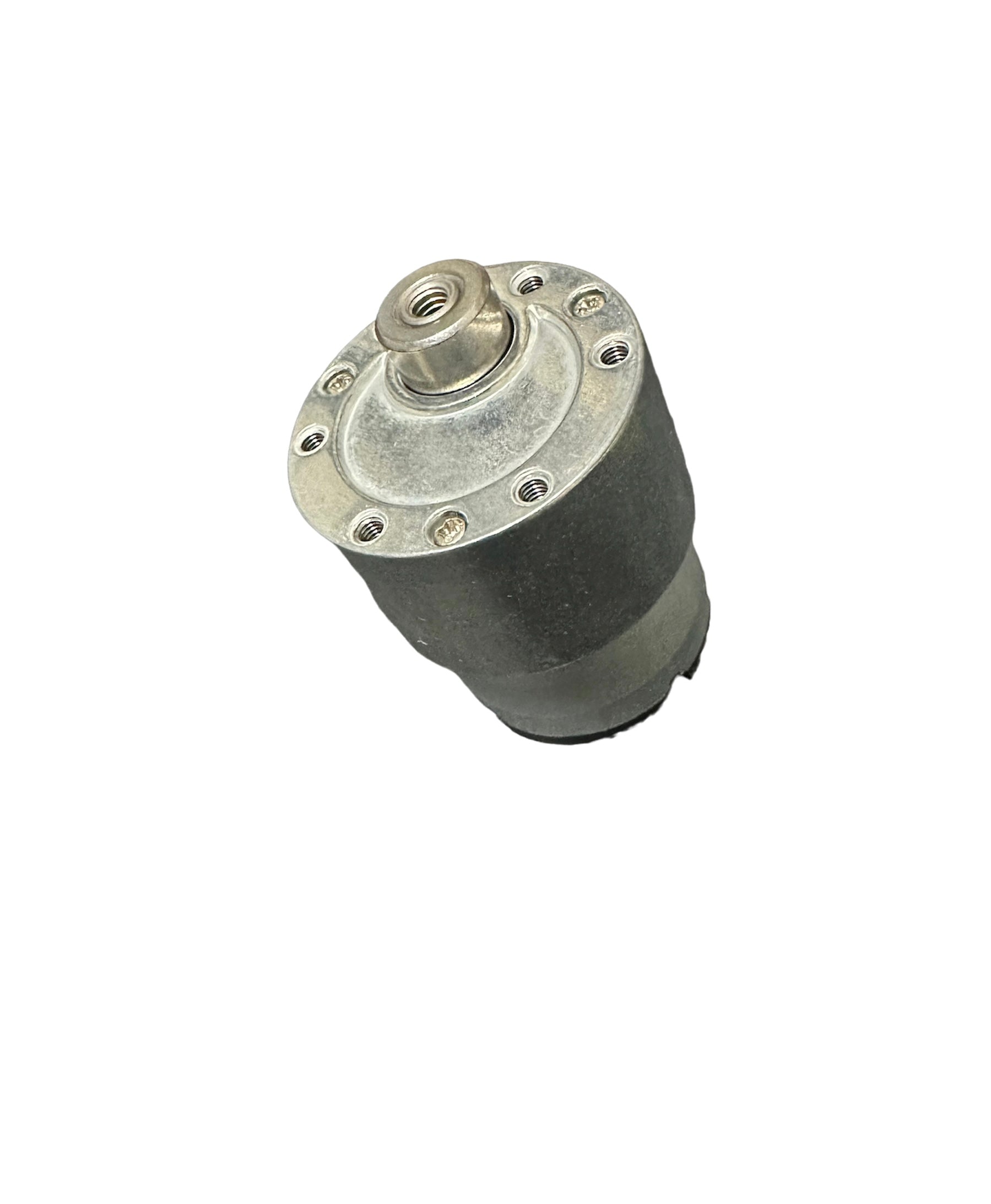

Replacement Parts - Motor (Annealer)

Burstfire - Gen 2 - 2 in 1 Annealers

***IN STOCK and shipping same day or within 24 hours. (GREY and RED),

Download owners manual here: Owners Manual

What's included?

• Gen 2 Burstfire 2 in 1 Brass Case Annealer & Case Prep Center
• Brass Pencil Flame Torch
• Torch Extension Hose 60”
• Red Anodized 6061 Aluminum Upper Wheels - Both Standard & Magnum
• Red Anodized 6061 Aluminum Bottom / Rotation Wheel.
• Toolless Adjustment 360 Swivel Torch Holder
• ***Short case feed ramp - for loading short cases such as 6BR/300BO/pistol cases. It’s FREE ! Simply add to your shipping cart and redeem for FREE using coupon code: SHORTY
• Integrated 110V - 240v Power Supply (international customers simply need to purchase a plug outlet adapter. For some countries we may recommend using a step down voltage converter.
• ***Case prep tool bits are NOT included and sold separately.

******INTERNATIONAL ORDERS:

• Flat rate shipping does NOT include shipping to PO Boxes. Shopping rate to PO Boxes are unfortunately significantly higher to some countries, such as Canada.
• To ship to PO Box, please select usps option. Economy flat rate will be through UPS.
• All internationals orders will come included with all of the above, short case feed ramp & spare parts kit.
• Short Case Feed Ramp
• Spare parts kit

LIMITED LIFETIME WARRANTY (download user guide / operating manual on tutorial page for details)

——————————————————————-——-

Introducing, industry first, the original Burstfire, 2-in-1 Brass Case Annealing Machine and Case Prep Center!

Improve and Automate the process of brass case annealing, increase speed and accuracy of case prepping for reloading!

GEN 2 Brass Case Annealer / Annealing Machine - for reloading case prep:

• New on Gen 2 - All Red Anodized Aluminum Wheels (Standard, Magnum, and Bottom Rotation Wheel) are included on all Gen 2 units.
• New on Gen 2 - Upgraded Toolless Adjustment 360 Swivel Torch Holder. The only toolless torch holder design on the market! Now standard on all Gen 2 units!
• New on Gen 2 - Updated, sleek, glossy glass digital display for speed Controller.
• New on Gen 2 - Improved / Updated speed control to a sleek and silky smooth turn knob design. Provides both speed, and simplified speed change operation.
• New on Gen 2 - Upgraded Door Actuator. Instant drop. Minimize time brass stays in the heat once it's done.
• New on Gen 2 - Updated chute design. Improved feeding when processing large batches / full chute.
• New on Gen 2 - Upgraded, Tilt adjustable feet. Improved feeding.
• New on Gen 2 - No complicated set up required! Ready to go out of box! Well, we lied. Simply attach the torch to the torch holder, and ready to go in 15 seconds! No messing around with finicky set ups like other units out there.
• New on Gen 2 - New color! Now available in RED (limited edition).
• Powered by 6 independently driven high torque motor. Unlike all other Annealer, it has no plastic parts, and not gear driven. Each motor is rated for 30k+ hours. No single point of failure!
• Precision Laser cut steel panels, with a beautiful durable, wear/scratch resistant finish. Not like you’re going to beat on it, but it’s what you would call, “built like a tank”.
• Brass case capacity is approximately 200-300 cases (dependent on caliber)
• Mechanically operated case release / drop, eliminating the need to have to adjust / tune it based on case size.
• Aluminum Standard size wheels will accommodate cases from 300 blkout, 6BR, 223, and up to 30-06.
• Aluminum Magnum wheels will accommodate cases up to 338 Lapua Magnum or similar cases.
• No complicated assembly, finicky set up / adjustments needed out of box! Open the box, attach the torch to the ring, and you're ready to go!

Case Prep Center:

• Prep Center is powered by 4 independently operated high torque motorized heads on the top. It will accept any industry standard 8/32 thread attachments for Debur, chamfer, primer pocket reamer, pocket uniformer, flashhole uniformer, etc
• Case Prep Center Attachments are sold separately, if you do not have them already. ***Check out our Burstfire Ultimate Case Prep Tool Kit.
• One of four motors operates at reduced speed, to allow for precision work normally done by hand.
• Prep center can be operated upright, or laid down on the steel handle, to maximize comfort, based on your personal preference.
• On/Off switch independent from Case Annealer.
• Steel handle for easy carrying.

Compared to other Case Annealers on the market:

•  Burstfire 2 in 1 Case Annealing Machine and Case Prep Center is powered by 6 independently operated high torque motor, rated for 30k+ hours. Not gear driven through a single motor like all others on market. NO SINGLE POINT OF FAILURE!
• No plastic parts. Only extensively tested, premium parts are used.
• The only 2 in 1 Case Annealing Machine on the market! Combining both Case Annealer + Case Prep Center!
• We don’t use only imported / China parts, assemble them in our shop and call it “made in USA”. We use premium quality imported, and also in-house, US made parts! Proudly assembled in a certified facility (Taiwan), ensuring highest level of consistency in production quality and QC we or any other small/medium shop can achieve!
• All of the above while providing you the best deal / “bang for your buck” on the market! There’s no secret to this. It’s a simple customer centric approach. Customers deserves what they paid for, and receive world class customer service by our team here at BFG! It’s that simple.

Again, we believe customers deserve what they paid for. Designed with a focus on quality & function, to produce the best product aesthetically, functionally, efficient, and most importantly at an affordable price. “Wow” is the  word we want customers to say to themselves the moment they open the box, or after engaging with our world class customer service!

ANSWERING COMMON CONCERNS:

• CASE NOT ROTATING:

1. Case slippage on the wheel is almost always caused by the presence of lube. If you are experiencing this issue, read below.
2. Annealing is usually done BEFORE sizing. When annealing, make sure the case is free of lube. The lube will cause the case to slip on the rubber O-Rings.
3. We go through a 2 step cleaning process to clean off the industrial grease on O-Rings during its manufacturing process. But can’t get them all, all the time.
4. We recommend cleaning off the grease on the o rings during first use, by using a heavy duty degreaser, like a engine or brake cleaner. Alcohol is not sufficient to remove the industrial grease on the o rings.
5. This should resolve the rotation issues immediately.



Torch / Propane issues:

1. We highly recommend using the SHORt camping propane canisters, such as the ones from Coleman, instead of the tall ones from Bernzomatic.
2. Why? There are many reasons and benefits. The Short bottle is shorter, has a larger base, will provide a more stable platform without tipping over, and easier to store, UPRIGHT. Versus the tallers one which is meant to be hand held, will tip over, and difficult to store upright.
3. ***It is critical bottles are stored upright, not kn its side. The odorant in the propane is an oily substance that usually sits at the bottom of the canisters. When the bottle is tilted, or stored on it side for a prolonged period, the oil from the canister will go into the hose and also the torch, causing it to malfunction.
4. when “malfunctioning” due to the oily substance, it will cause inconsistent flames, and potentially shooting out and/or dripping what can be described as “fireballs”. Very dangerous.
5. New, properly stored (upright) canister are less likely to cause this issue. That is why we recommend the camping canisters, as they have are easier to store, won’t tip over, and are likely to be newer and fresh at the stores as it can be used on a wide variety of things.

***Disclaimer:  Download the safety & operating manual, and carefully read through manual prior to setting up and operating the machine. Failure to do so may lead to misuse of this equipment, causing serious injuries or property damage.

Visit Tutorial page on Burstfireguns website for video instructions & demo:

Burstfire Case Prep Tool Set Package

It includes everything you need to prep your brass cases

• VLD Inside Chamfer Tool
• Outside Debur
• Primer Pocket Reamer (large & small)
• Primer Pocket Cleaners (large & small)
• ***Upgrade to P2 for all of the above + Uniformer Set
• ***Upgrade to P3 to get all of the above + primer pocket go + no-go gauge set

Burstfire's Ultimate Case Prep Tool Set includes all the Case Prep tools you need to do all your basic prepping tasks in one package!

• First of all, if you've used these tools in the past, you know the struggle of dull cutters. We manufactured these with the highest quality material to ensure long term performance. You will appreciate the clean cuts / performance from our tools!
• The handle is threaded in the middle, which will allow you to unthreads in the middle to store all the small parts.
• The thread at each end of the handle will allow you to attach the Case Prep Heads for manual operating.
• You can also attach the heads atop our Burstfire Case Annealer & Case Prep Center Combo unit to motorize and speed up the process by at least 5x!
• This kit allows you to conveniently and efficiently clean primer pockets, debur the inside and outside of your cartridge neck, two at a time by attaching to the handle, or all at once atop our Case Prep Center!

Burstfire - Ultimate Primer Pocket Reamer Set

• First of all, if you've used these tools in the past, you know the struggle of dull cutters. We manufactured these with the highest quality material to ensure long term performance. You will appreciate the clean cuts / performance from our tool

• *** Hate reaming / swaging? Burstfire Ultimate Small Primer Pocket Reamer is the easiest, fastest, and most effective solution on the market!


• We redesigned and Improved vs others on the market. Normal reamers cut at 35-40 degree angle, which will require excessive metal to be cut for the crimp to be removed. BFG Reamers 80-85 degree angle, to SAAMI dimensions, and requires minimal cutting.

• Cut radius for our tools is 0.0025 below standard primer dimensions. For small is 0.1730 and 0.209 for large, compared to 0.167 small and 0.202 large for most other products in the market (undersized).

• *****The reamer does NOT need to be inserted all the way into the primer pocket. Insert until you feel / hear the cutting, and it should be sifficient! (unless your preference if to open it up a bit more to assist in ease of priming using a hand primer). It is designed to be quick “tap and go”, and is all you need! It's like swaging, but better, and faster.

• ****Best way to check correct / ideal primer pocket dimensions, is through the use of a Primer Pocket Go & No Gauge. We highly recommend. You can find them HERE in our website.

• Check out this video!

Burstfire - Primer Pocket Uniformer Set

• Like everything Burstfire, our Pocket uniformed is improved over rest on the market!
• So what’s diff? All pocket uniformer in the market are made way too small. Result is it creates a circular wobble when attempting to “uniform” the pocket. Which results in more effort/time to cut and uniform the pocket, evenly.
• our is made to the correct dimension, cutting the primer pockets at the correctly dimensions in both width and depth, effectively removing that wobble effect, and just enough that it does not remove any metal on the pocket wall.
• Purpose: Uniform uneven primer pockets, to ensure reliable primer ignition, and/or to prevent the possibility of slam-fire from primer not being seated deep enough.
• Another use case is to remove the protruding flash hole, caused by using incorrect decapping pin on smaller or undersized flash holes, causing flash hole to be punched outwards, and deformed.
• Industry standard 8/32 thread can be attached to any prep tool handle, or atop a Case Prep Center.

Burstfire - VLD Chamfer & Deburr Tool Set

• Burstfire - VLD Chamfer & Deburr Tool Set
• To chamfer and deburr your case mouth
• Chamfer inside case mouth to smooth out rough inner edges from trimming, and allow for smooth bullet seating. Prevents shaving off bullet plating when seating.
• Deburr outside case mouth, to remove rough edges / burr from case trimming process
• Industry standard 8/32 threaded. Can fit into any prep tool handles, or case prep centers, such as the Burstfire 2 in 1 Case Annealer & Prep Center

Burstfire - Ultimate Primer Pocket Reamer / Military Crimp Remover Set (Large & Small)

• First of all, if you've used other tools in the past, you know the struggle of dull cutters that won’t last long. We manufactured these with the highest quality material to ensure long term performance. You will appreciate the clean cuts / performance from our prep tools! And it comes with lifetime warranty!

• *** Hate reaming / swaging? Burstfire Ultimate Small Primer Pocket Reamer is the easiest, fastest, and most effective solution on the market!


• We redesigned and Improved vs others on the market. Normal reamers cut at 35-40 degree angle, which will require excessive metal to be cut for the crimp to be removed. BFG Reamers 80-85 degree angle, to SAAMI dimensions, and requires minimal cutting.

• Cut radius for our tools is 0.0025 below standard primer dimensions. For small is 0.1730 and 0.209 for large, compared to 0.167 small and 0.202 large for most other products in the market (undersized). A quick “tap and go” is all you need! It's like swaging, but better, and faster.

• *****The reamer does NOT need to be inserted all the way into the primer pocket. Insert until you feel / hear the cutting, and it should be sufficient! (unless your preference if to open it up a bit more to assist in ease of priming using a hand primer). It is designed to be quick “tap and go”, and is all you need! It's like swaging, but better, and faster.

• ****Best way to check correct / ideal primer pocket dimensions, is through the use of a Primer Pocket Go & No Gauge. We highly recommend. You can find them HERE in our website.

• Check out this video!

Burstfire - Primer Pocket Uniformer Set (Large & Small)

• Like everything Burstfire, our Pocket uniformed is improved over rest on the market!
• So what’s diff? All pocket uniformer in the market are made way too small. Result is it creates a circular wobble when attempting to “uniform” the pocket. Which results in more effort/time to cut and uniform the pocket, evenly.
• our is made to the correct dimension, cutting the primer pockets at the correctly dimensions in both width and depth, effectively removing that wobble effect, and just enough that it does not remove any metal on the pocket wall.
• Purpose: Uniform uneven primer pockets, to ensure reliable primer ignition, and/or to prevent the possibility of slam-fire from primer not being seated deep enough.
• Another use case is to remove the protruding flash hole, caused by using incorrect decapping pin on smaller or undersized flash holes, causing flash hole to be punched outwards, and deformed.
• Industry standard 8/32 thread can be attached to any prep tool handle, or atop a Case Prep Center.

• Never guess again if your primer pockets were properly reamed or swaged.
  Include large & small primer pocket gauge.
• Enlarged body, curved (go gauge) / Swirl (no-go) design for a secure grip to be held by hand.
• It can also be attached to an existing industry standard 8/32 threaded hand tool handle, to maximize comfort.
• We all want a tight primer pocket, that will not loosen up before our brass fails. Especially if you use expensive brass.
• Using small primer pocket as an example. Our small gauge is made to 0.1725. Variation for small primers is 0.1745 - 0.1755 in diameter. ***Majority of small primers will be 0.175.
• We have found, a .175 primer, can be inserted in a .1725 pocket on a press, but may meet some resistance at .1755 (Will not work in most cases if hand priming. In this case simply set up the reamer / Swager to go just a tad bit further).
• ***Proper use of gauge: Make sure the gauge can be freely inserted into the pocket, without sticking / without requiring any force to push it all the way in, or pull all the way out.

NO-GO GAUGES:

• No-Go Gauges are made .005 over max pocket dimensions. If the No-Go Gauge can be inserted, it indicates your primer pocket may be too loose for some primers. It is strongly recommended at that point to either recondition your pockets, or discard/recycle the case.
• At times, the No-Go Gauge may be partially inserted into the primer pockets. That is NOT an indication of a loose primer pocket. It has to be fully inserted, without any resistance.

If you want the highest level of precision and control, this is it. But keep in mind there are variations from brand to brand, and lot to lot. Cup thickness is a factor in if it will fit or how easily it will fit as well.
