NEW - Gen 2 - Burstfire -2 in 1 - Annealer & Case Prep Center
Save on the 3 things most of us donβt have enough of. Time, Money, and Bench / Storage space.
Introducing the first of its kind! Annealing & Case Prep Center Combo! Do all your case prep with a single, compact unit!
Automated the process of annealing. Extend brass case life. Improve consistency and accuracy.
Case prep center will enhance brass case prep speed, consistency, and uniformity.
NEW GEN 2 - Burstfire 2 in 1 Annealing & Case Prep Center
Burstfire
Complete Case Prep Tool Kit
Dimensionally correct within SAAMI spec. Sharp and durable. Blades will not dull after only a few hundred or couple thousand cases! Backed by lifetime warranty!
AttachedΒ between the two wheels to accommodate short cases such as 38/357, 44 mag, 44-40, 300 blkout, 6mm BR.
The feed ramp is magnetic, offeringΒ a simple, toolless adapter that can be quickly attached and removed, with the purpose to further expose the necks of the shorter cases. Simplifying torch adjustment and annealing process.
Introducing the Burstfire Neck Tension Gauge - The essential tool for any serious reloading enthusiast. This device accurately measures the amount of tension inside the neck of your brass cases, ensuring consistent and precise neck tensionΒ every time.

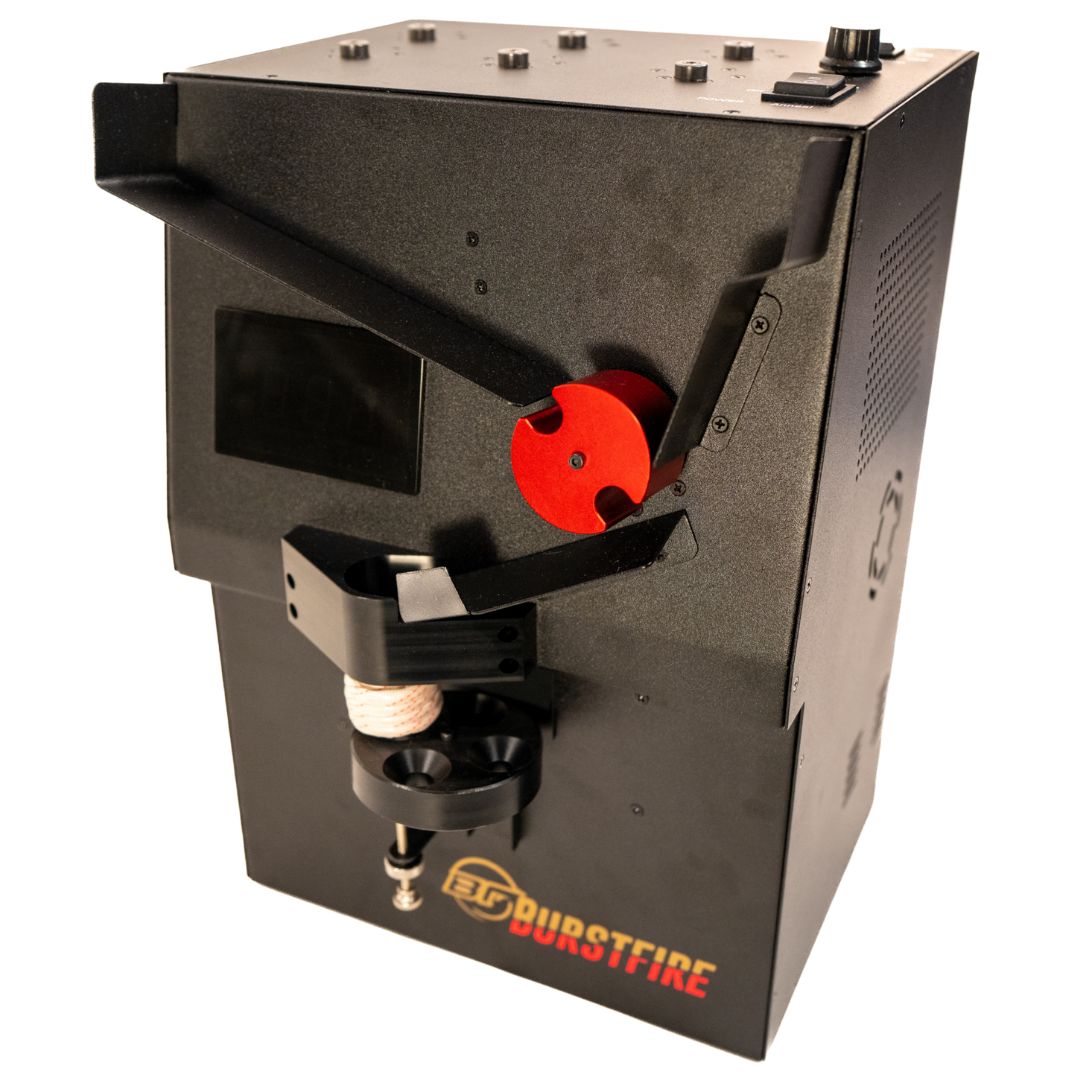

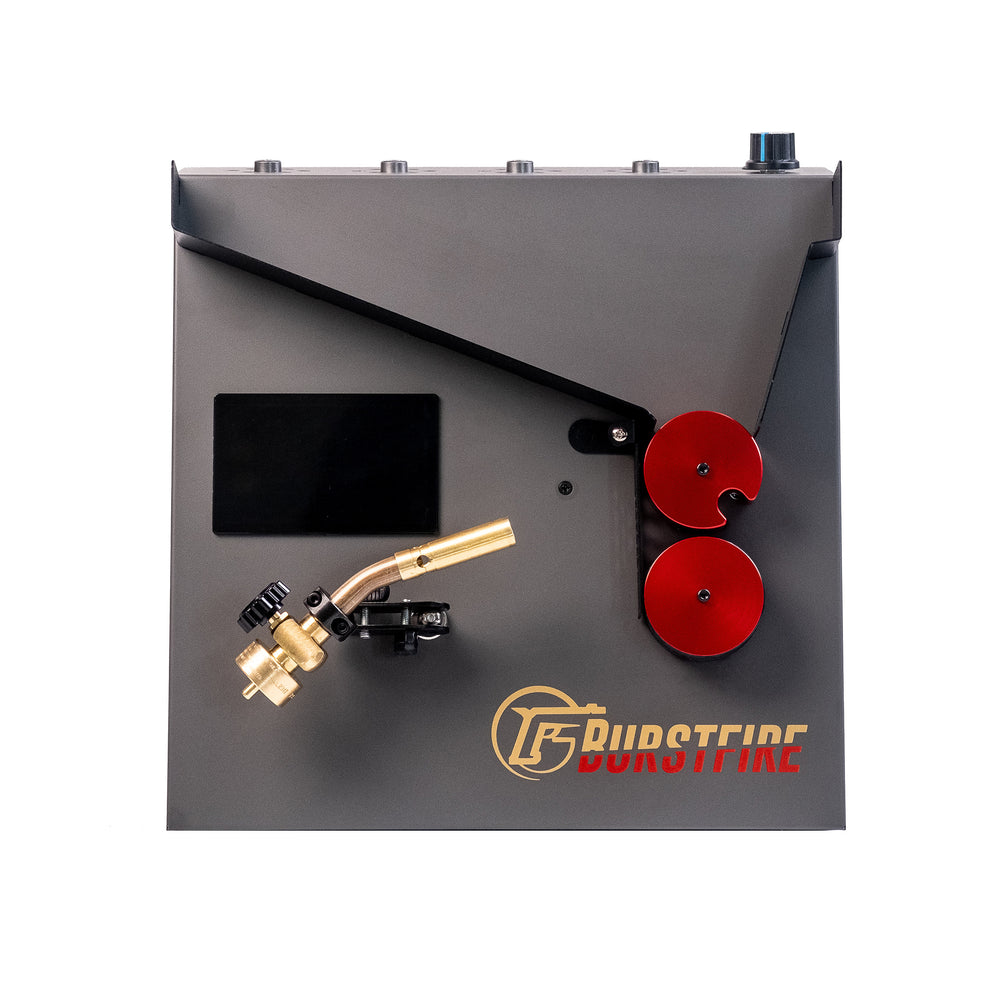

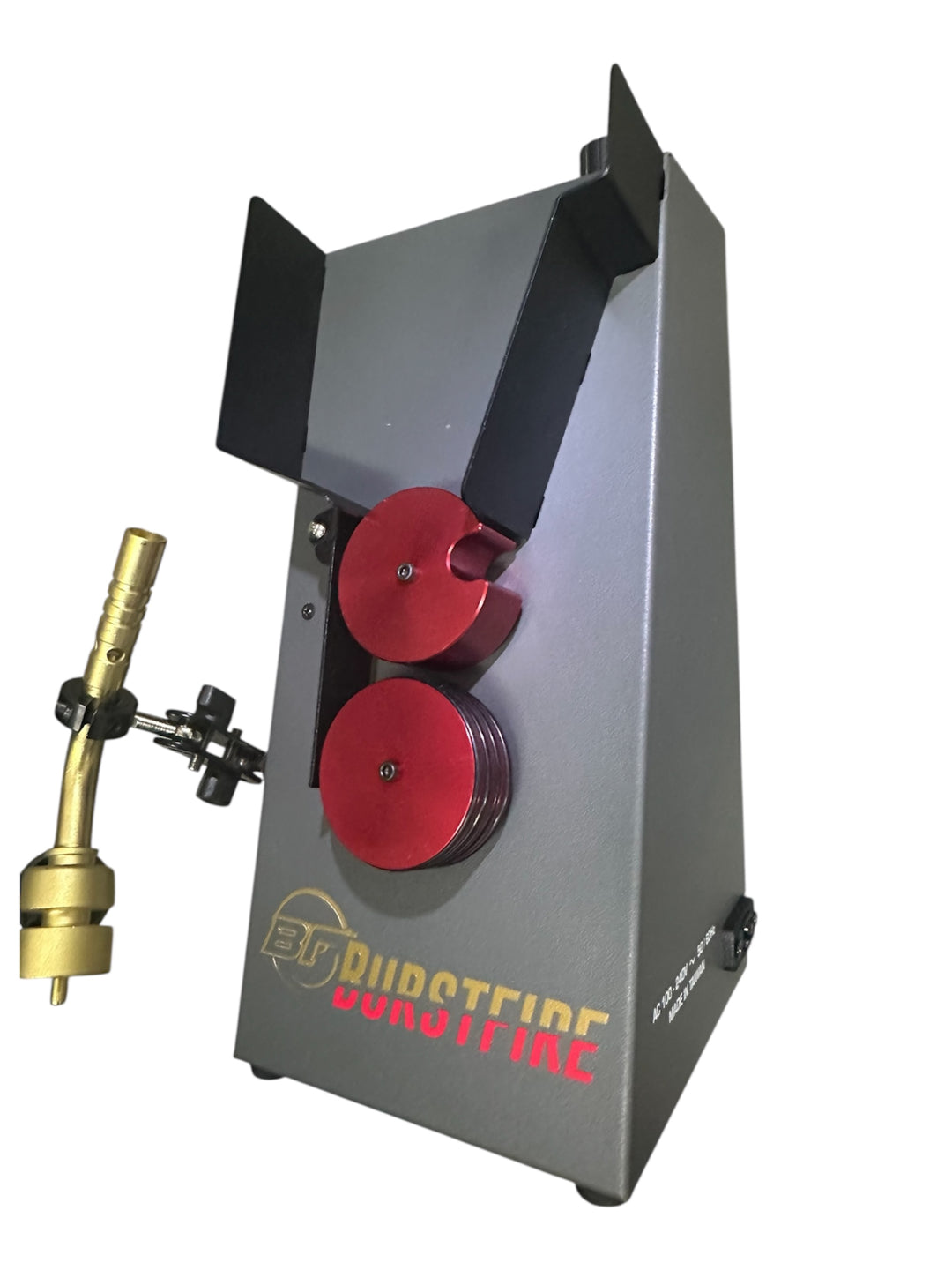

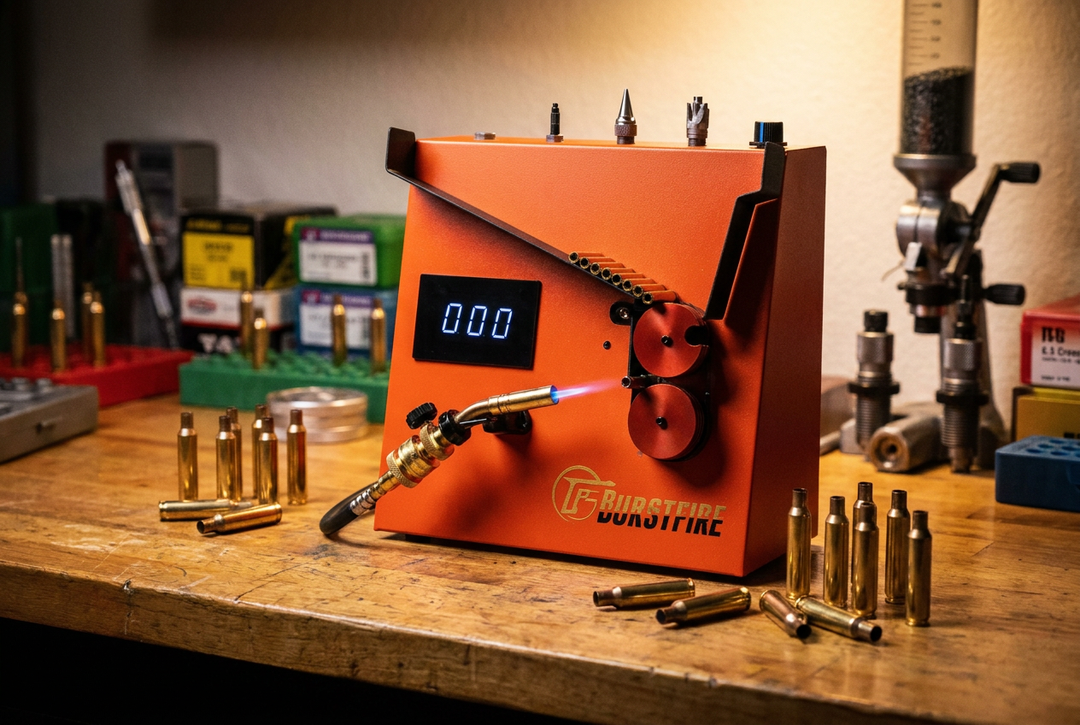

Gen 2 Burstfire 2 in 1 Brass Case Annealer & Case Prep Center
Brass Pencil Flame Torch
Torch Extension Hose 60β

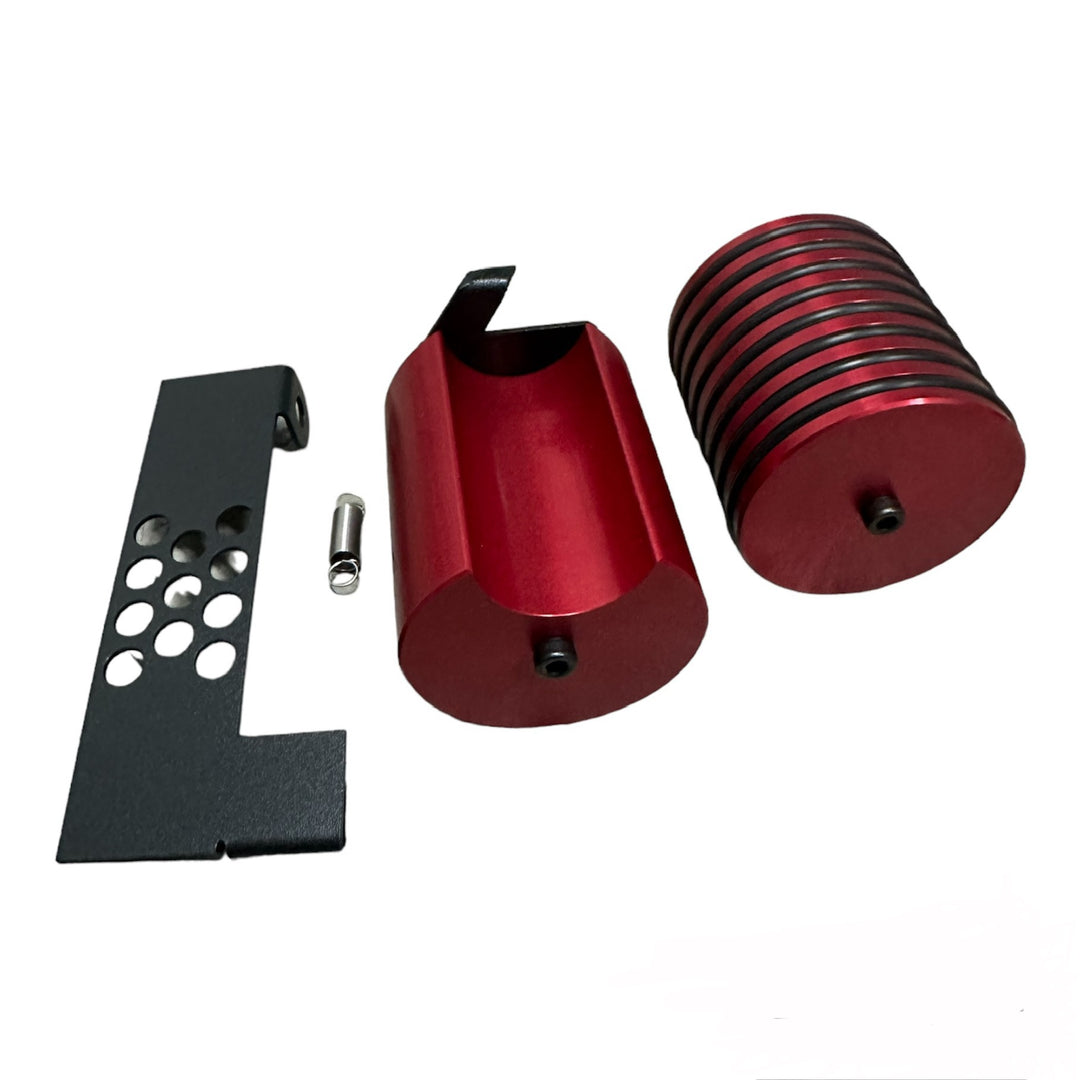

Red Anodized 6061 Aluminum Upper Wheels - BothΒ Standard & MagnumΒ
Red Anodized 6061 Aluminum Bottom / Rotation Wheel.
Toolless Adjustment 360 Swivel Torch Holder
***Short case feed ramp - itβs free if you need one, but need to be added to your shipping cart and redeem using coupon code: SHORTY

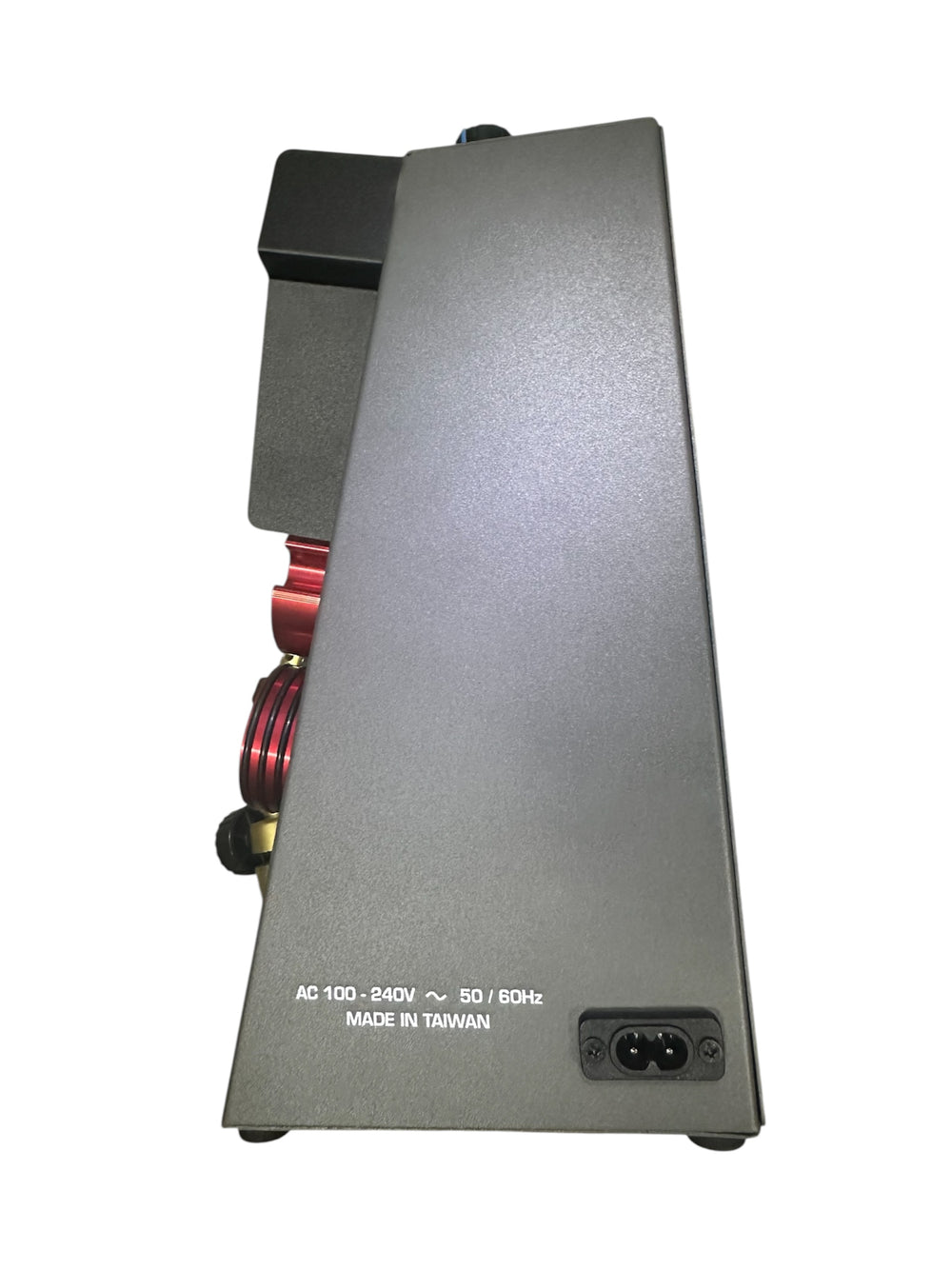

Integrated 110V - 240v Power Supply (international customers simply need to purchase a plug outlet adapter. For some countries we may recommend using aΒ step down voltage converter.
***Case prep tool bits are NOT included and sold separately.Β
******INTERNATIONAL ORDERS:
All internationals orders will come included with all of the above, plus extras listed below. This is to ensure you have everything you need, and wonβt have to come back and pay shipping if you missed anything.Β
Small wheel for 17/22 hornet & 5.7
Short Case Feed Ramp
Spare parts kitΒ Β
LIMITEDΒ LIFETIME WARRANTYΒ (download user guide / operating manual on tutorial page for details)

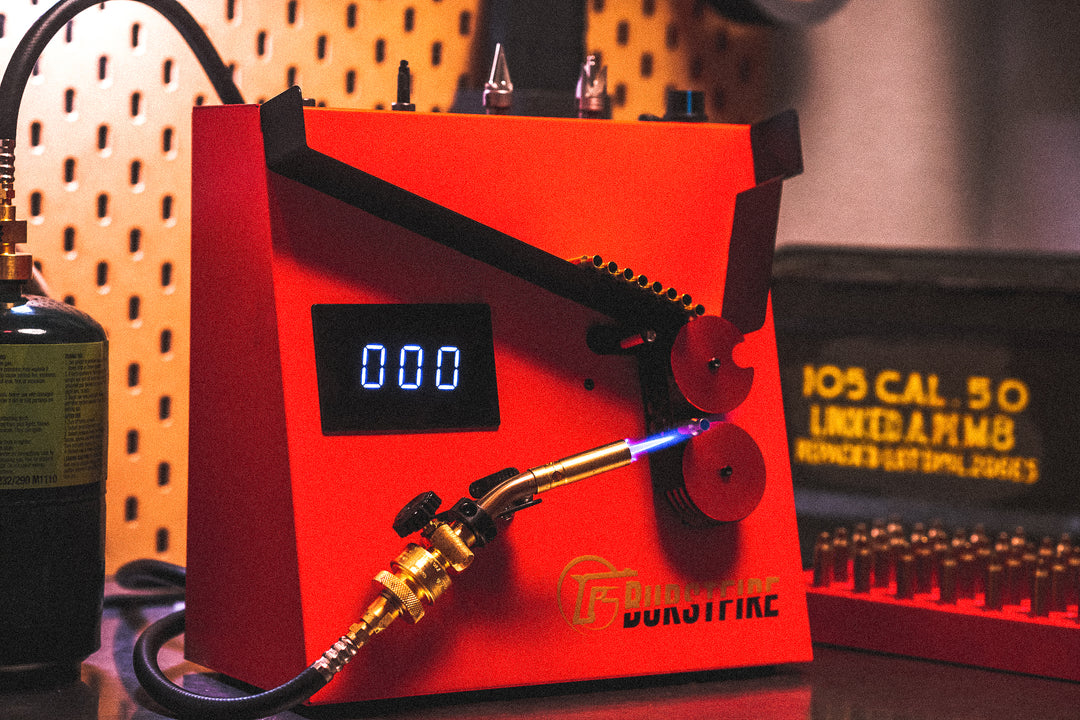

Introducing, industry first, the original Burstfire,Β 2-in-1Β BrassΒ Case Annealing Machine and Case Prep Center!Β
Improve and Automate the process of brass case annealing, increase speed andΒ accuracy of case prepping for reloading!Β
GENΒ 2 Brass Case Annealer / Annealing Machine - for reloading case prep:
New on Gen 2Β -Β All Red Anodized Aluminum Wheels (Standard, Magnum, and Bottom Rotation Wheel) are includedΒ on all Gen 2 units.Β
New on Gen 2Β - Upgraded Toolless Adjustment 360 Swivel Torch Holder. The only toolless torch holder design on the market! Now standard on all Gen 2 units!Β
New on Gen 2Β - Updated, sleek, glossy glassΒ digital display for speed Controller.Β
New on Gen 2Β - Improved / Updated speed control to a sleek and silky smooth turn knobΒ design. Provides both speed, and simplified speed change operation.Β
New on Gen 2Β -Β Upgraded Door Actuator. Instant drop. Minimize time brass stays in theΒ heat once it's done.Β
New on Gen 2Β - Updated chute design. Improved feeding when processing large batches / full chute.
New on Gen 2Β - Upgraded, Tilt adjustable feet. Improved feeding.Β
New on Gen 2Β - No complicated set up required! Ready to go out of box! Well, we lied. Simply attach the torch to the torch holder, and ready to go in 15 seconds! No messing around with finicky set ups like other units out there.

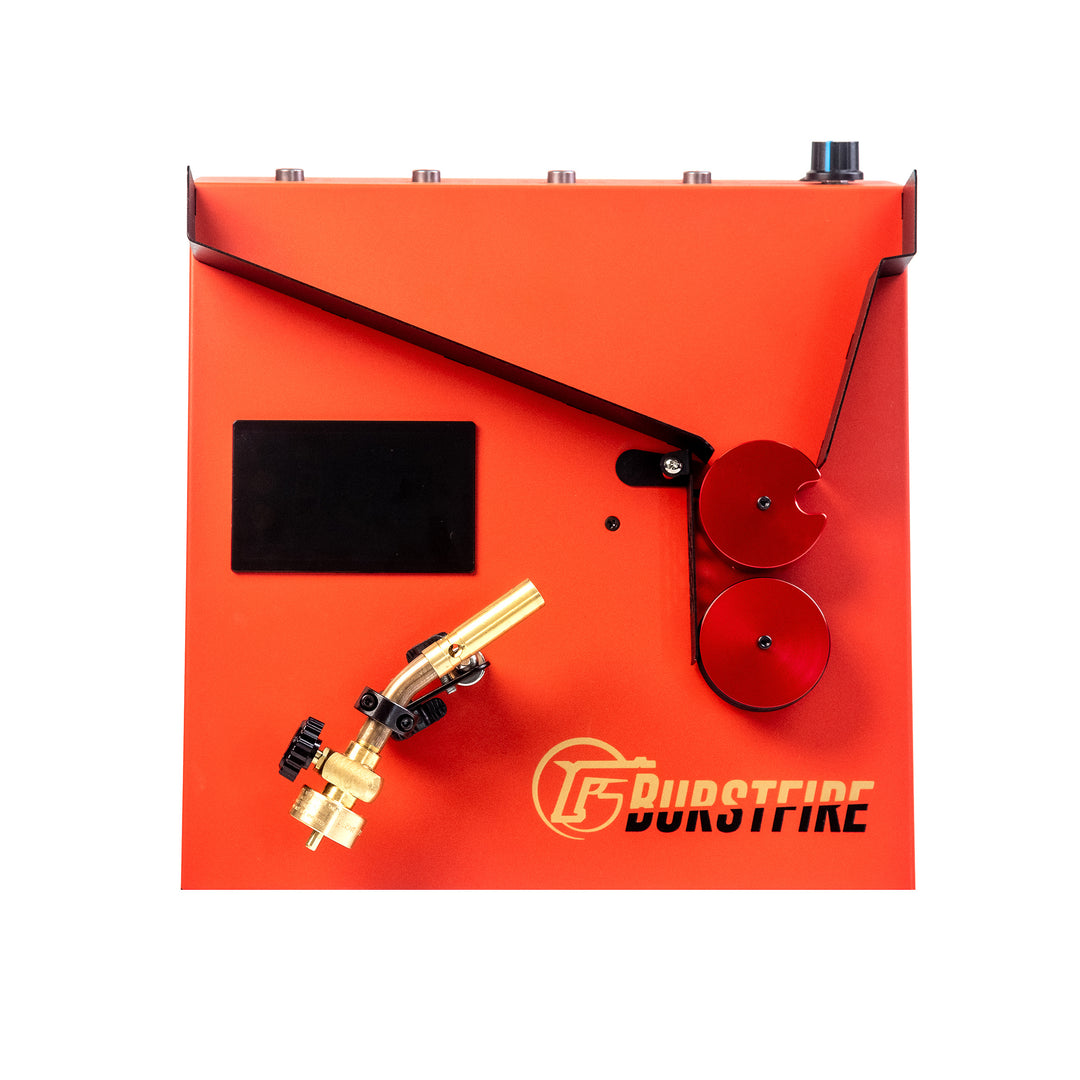

New on Gen 2Β - New color! Now available inΒ REDΒ (limited edition).
Powered by 6 independently driven high torque motor. Unlike all other Annealer, it has no plastic parts, and not gear driven. Each motor is rated for 30k+ hours. No single point of failure!Β
Precision Laser cut steel panels, with a beautiful durable, wear/scratch resistant finish. Not like youβre going to beat on it, but itβs what you would call, βbuilt like a tankβ. Β

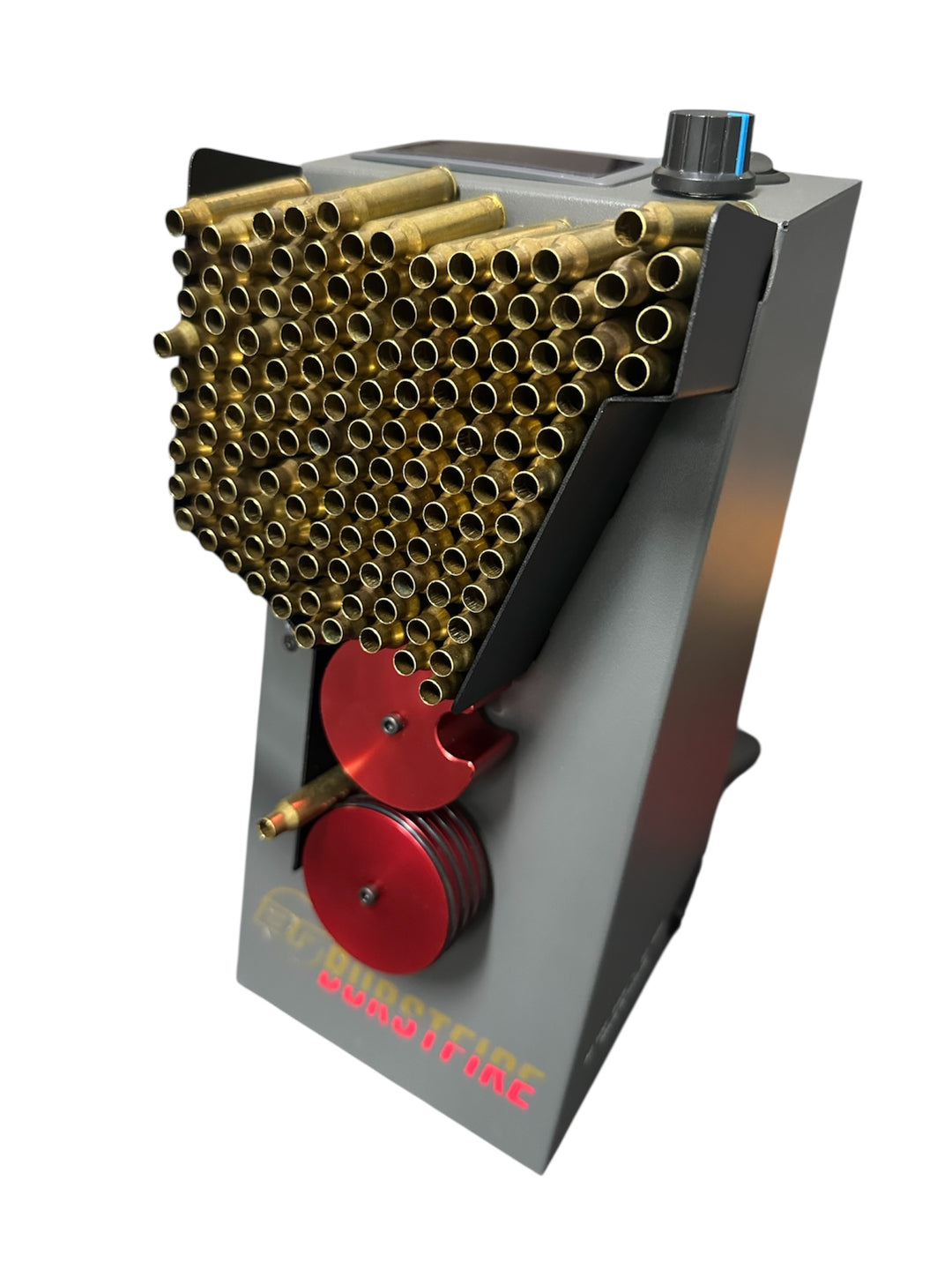

Brass case capacity is approximately 200-300 cases (dependent on caliber)
MechanicallyΒ operated case release / drop, eliminating the need to have to adjust / tune it based on case size.
Aluminum Standard size wheels willΒ accommodate cases from 300 blkout, 6BR, 223, and up to 30-06.
Aluminum Magnum wheels will accommodate cases up to 338 Lapua Magnum or similar cases.
No complicated assembly, finicky set up / adjustments needed out of box! Open the box, attach the torch to the ring, and you're ready to go!

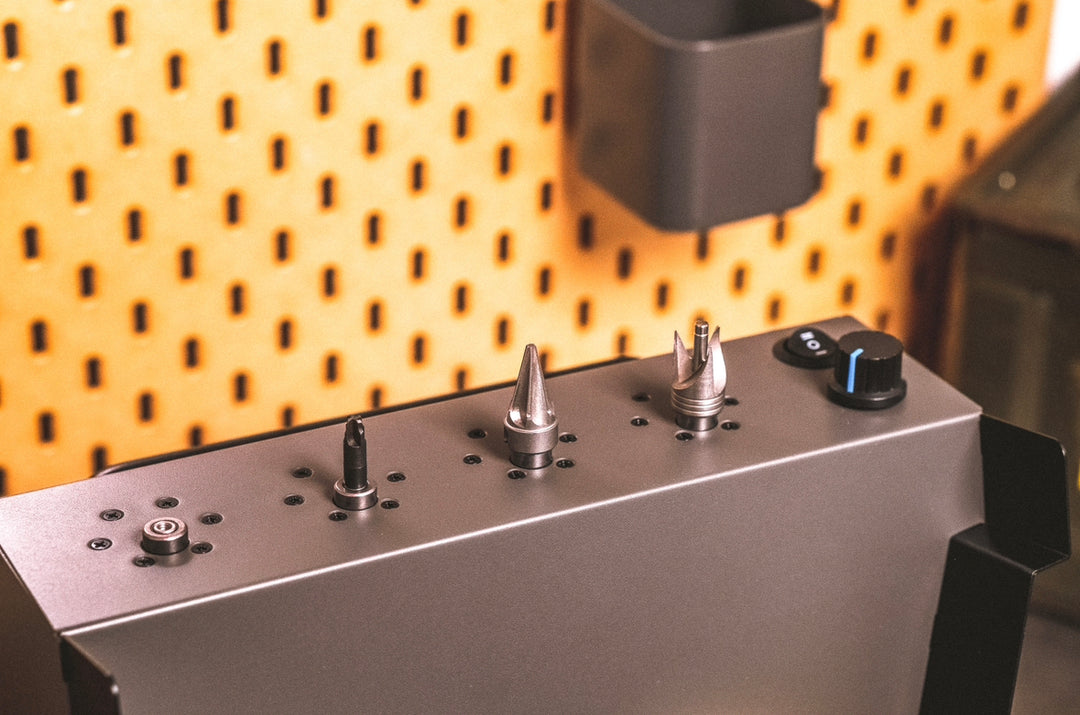

Case Prep Center:
Prep Center is powered by 4 independently operated high torque motorized heads on the top. ItΒ will accept any industry standardΒ 8/32Β thread attachments for Debur, chamfer, primer pocket reamer, pocket uniformer, flashhole uniformer, etc
Case Prep Center Attachments are sold separately,Β if you do not have them already.Β ***Check out our Burstfire Ultimate Case Prep Tool Kit.Β
One of four motors operates at reduced speed, to allow for precision work normally done by hand.
Prep center can be operated upright, or laid down on the steel handle, to maximize comfort, based on your personal preference.Β
On/Off switch independent from Case Annealer.Β
Steel handle for easy carrying.Β
Β
Compared to other Case Annealers on the market:
Β Burstfire 2 in 1 Case Annealing Machine and Case Prep CenterΒ is powered byΒ 6 independently operated high torque motor, rated for 30k+ hours. Not gear driven through a single motor like all others on market.Β NO SINGLE POINT OF FAILURE!
No plastic parts. Only extensively tested, premium parts are used.
The onlyΒ 2 in 1 Case Annealing MachineΒ on the market! Combining both Case Annealer + Case Prep Center!
We donβt use only imported / China parts, assemble them in our shop and call it βmade in USAβ. We useΒ premium quality imported, and also US made parts! Proudly assembled in a certified facility (Taiwan), ensuring highest level of consistency in production quality and QCΒ we or any other small/medium shop can achieve!Β
All of the above while providing you the best deal / βbang for your buckβ on the market! Thereβs no secret to this. Itβs a simple customer centric approach. Customers deserves what they paid for, and receive world class customer service by our team here at BFG! Itβs that simple.Β
Again, we believe customers deserve what they paid for. Designed with a focus on quality & function, to produce the best product aesthetically, functionally, efficient, and most importantly at an affordable price. βWowβ is the Β word we want customers to say to themselves the moment they open the box, or after engaging withΒ our world class customer service!Β
Β
ANSWERING COMMON CONCERNS:
CASE NOT ROTATING:
Case slippage on the wheel is almost alwaysΒ caused by the presence of lube. If you are experiencing this issue, read below.Β
Annealing is usually done BEFORE sizing. When annealing, make sure the case is free of lube. The lube will cause the case to slip on the rubber O-Rings.
We go through a 2 step cleaning process to clean off the industrial grease on O-RingsΒ during its manufacturing process. But canβt get them all, all the time.Β
We recommend cleaning off the grease on the o rings during first use, by using a heavy duty degreaser, like a engine or brake cleaner. Alcohol is not sufficient to remove the industrial grease on the o rings.Β
This should resolve the rotation issues immediately.Β
Β
***Disclaimer:Β Β Download the safety & operating manual, and carefully read through manual prior to setting up and operating the machine. Failure to do so may lead to misuse of this equipment, causing serious injuries or property damage.Β
Visit Tutorial page on Burstfireguns website for video instructions & demo:
Β
burstfire

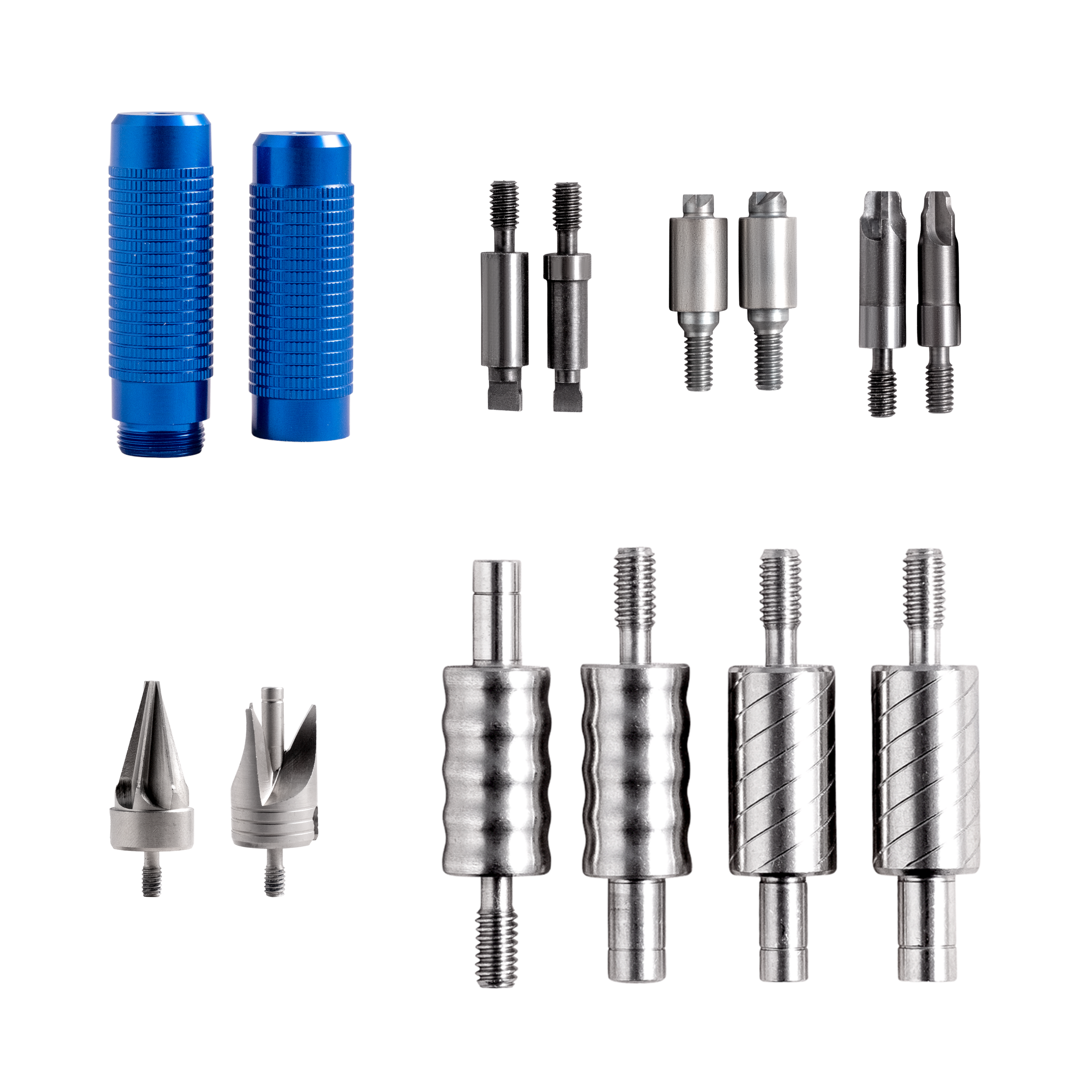

Burstfire - Ultimate Case Prep Tool Kits, with Handle + Case
Burstfire-CPT-P1-Blk
Regular price
$26.87

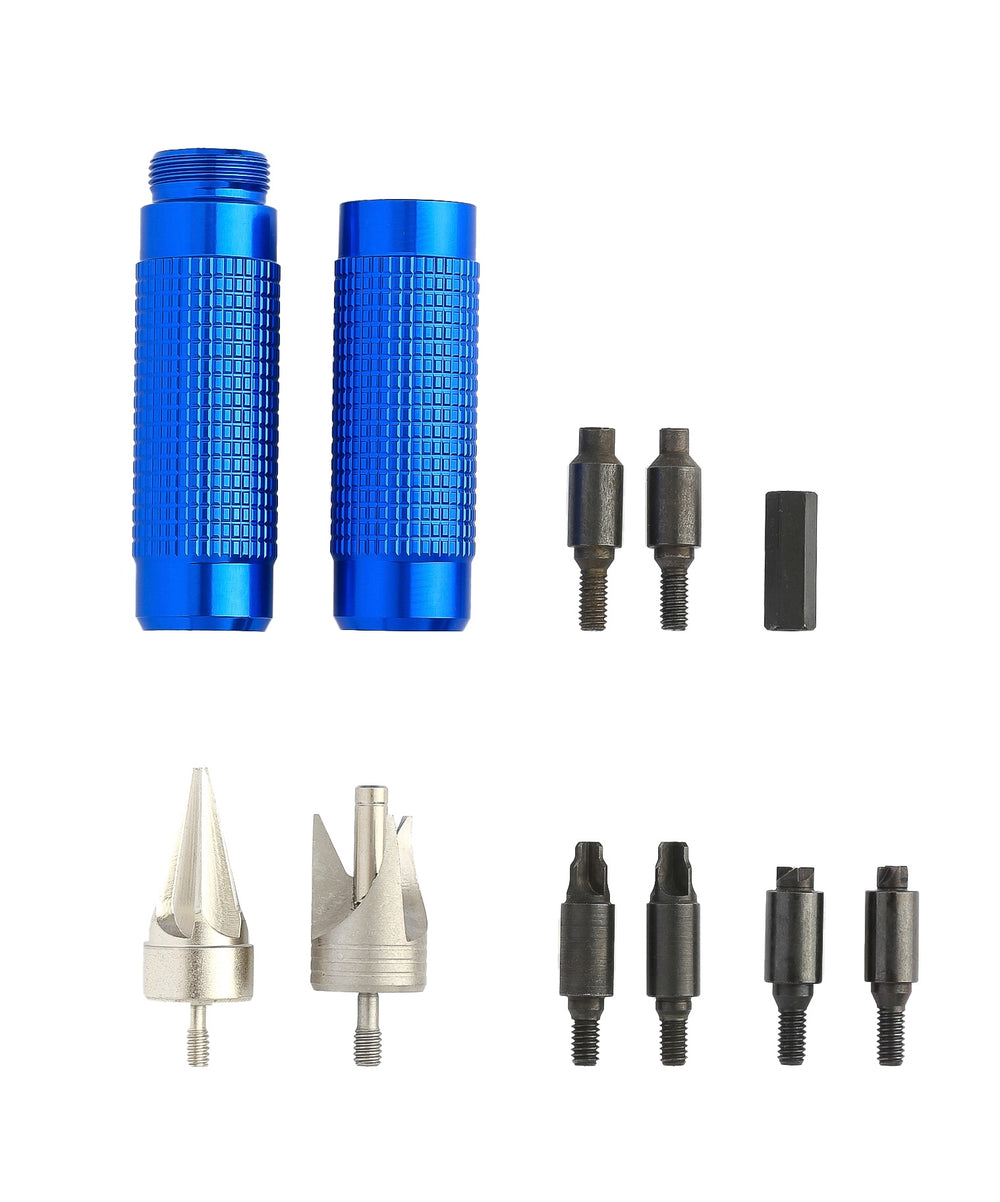

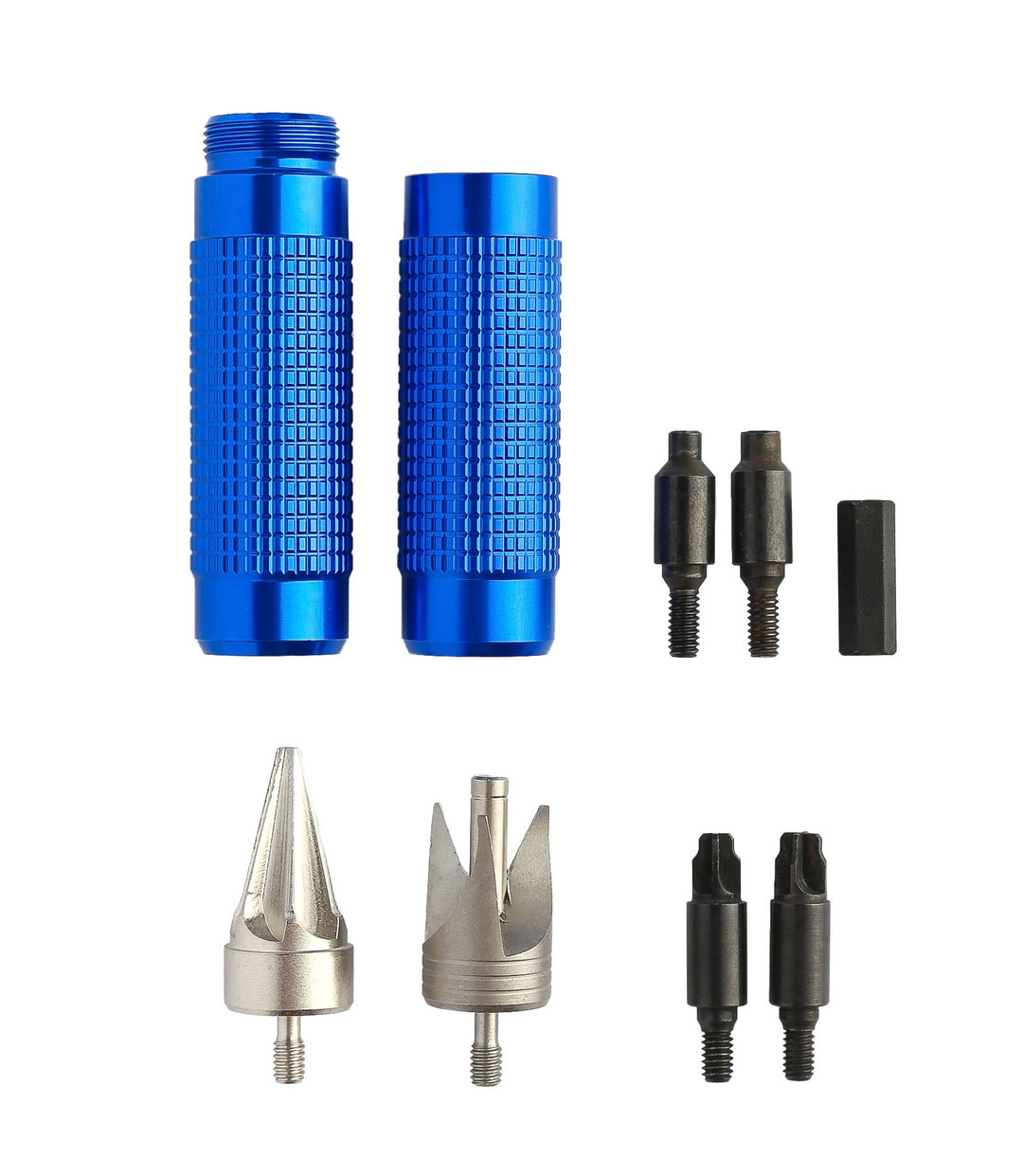

Burstfire Case Prep Tool Set Package
It includes everything you need to prep your brass cases
VLD Inside Chamfer ToolΒ
Outside Debur
Primer Pocket ReamerΒ (large & small)
Primer Pocket Cleaners (large & small)
***Upgrade to P2Β for all of the above + Uniformer Set
***Upgrade to P3 to get all of the above + primer pocket go + no-go gauge set
Β

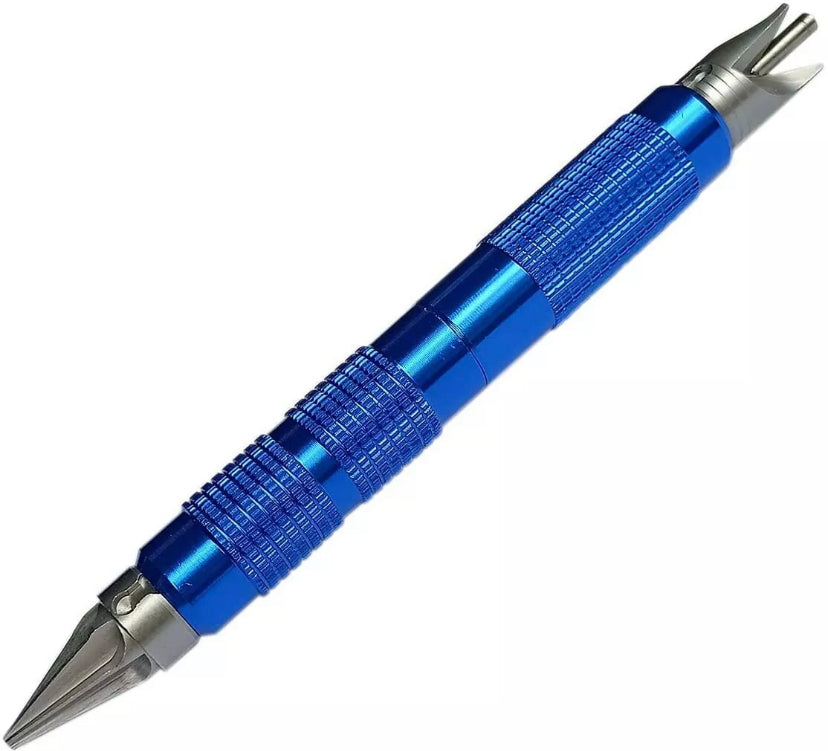

Burstfire's Ultimate Case Prep Tool Set includes all the Case Prep tools you need to do all your basic prepping tasks in one package!
First of all, if you've used these tools in the past, you know the struggle of dull cutters. We manufactured these with the highest quality material to ensure long term performance. You will appreciate the clean cuts / performance from our tools!
The handle is threaded in the middle, which will allow you to unthreads in the middle to store all the small parts.
The thread at each end of the handle will allow you to attach the Case Prep Heads for manual operating.
You can also attach the heads atop ourΒ Burstfire Case Annealer & Case Prep Center Combo unitΒ to motorize and speed up the process by at least 5x!
This kit allows you to conveniently and efficiently clean primer pockets, debur the inside and outside of your cartridge neck, two at a time by attaching to the handle, or all at once atop our Case Prep Center!

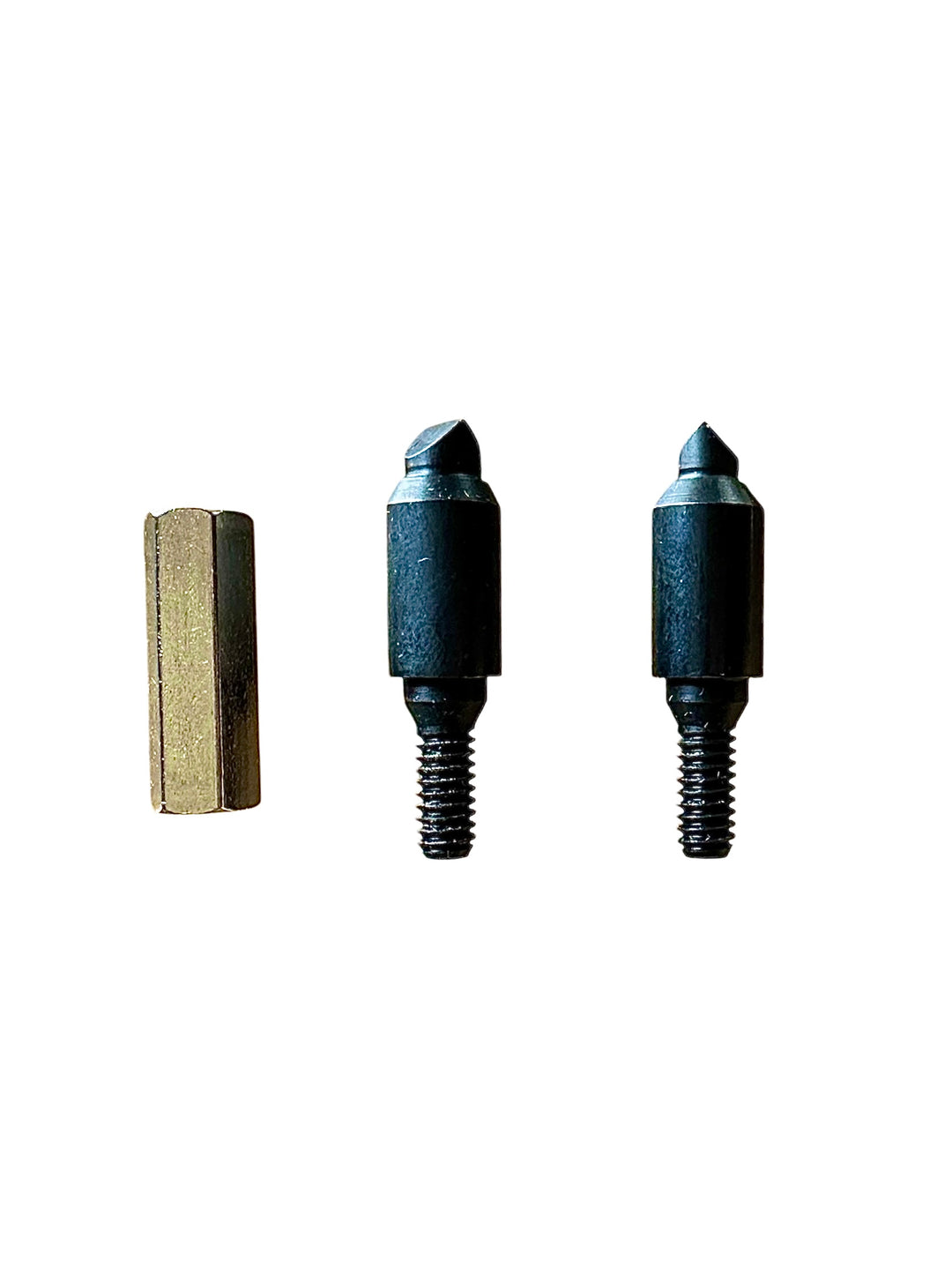

Burstfire - Ultimate Primer Pocket Reamer Set
First of all, if you've used these tools in the past, you know the struggle of dull cutters. We manufactured these with the highest quality material to ensure long term performance. You will appreciate the clean cuts / performance from our tool
*** Hate reaming / swaging? Burstfire Ultimate Small Primer Pocket Reamer is the easiest, fastest, and most effective solution on the market!
We redesigned and Improved vs others on the market. Normal reamers cut at 35-40 degree angle, which will require excessive metal to be cut for the crimp to be removed. BFG Reamers 80-85 degree angle, to SAAMI dimensions, and requires minimal cutting.
Cut radius for our tools is 0.0025 below standard primer dimensions. For small is 0.1730 and 0.209 for large, compared to 0.167 small and 0.202 large for most other products in the market (undersized).
*****The reamer does NOT need to be inserted all the way into the primer pocket. Insert until you feel / hear the cutting, and it should be sifficient! (unless your preference if to open it up a bit more to assist in ease of priming using a hand primer). It is designed to be quick βtap and goβ, and is all you need! It's like swaging, but better, and faster.
****Best way to check correct / ideal primer pocket dimensions, is through the use of a Primer Pocket Go & No Gauge. We highly recommend. You can find them HEREΒ in our website.Β

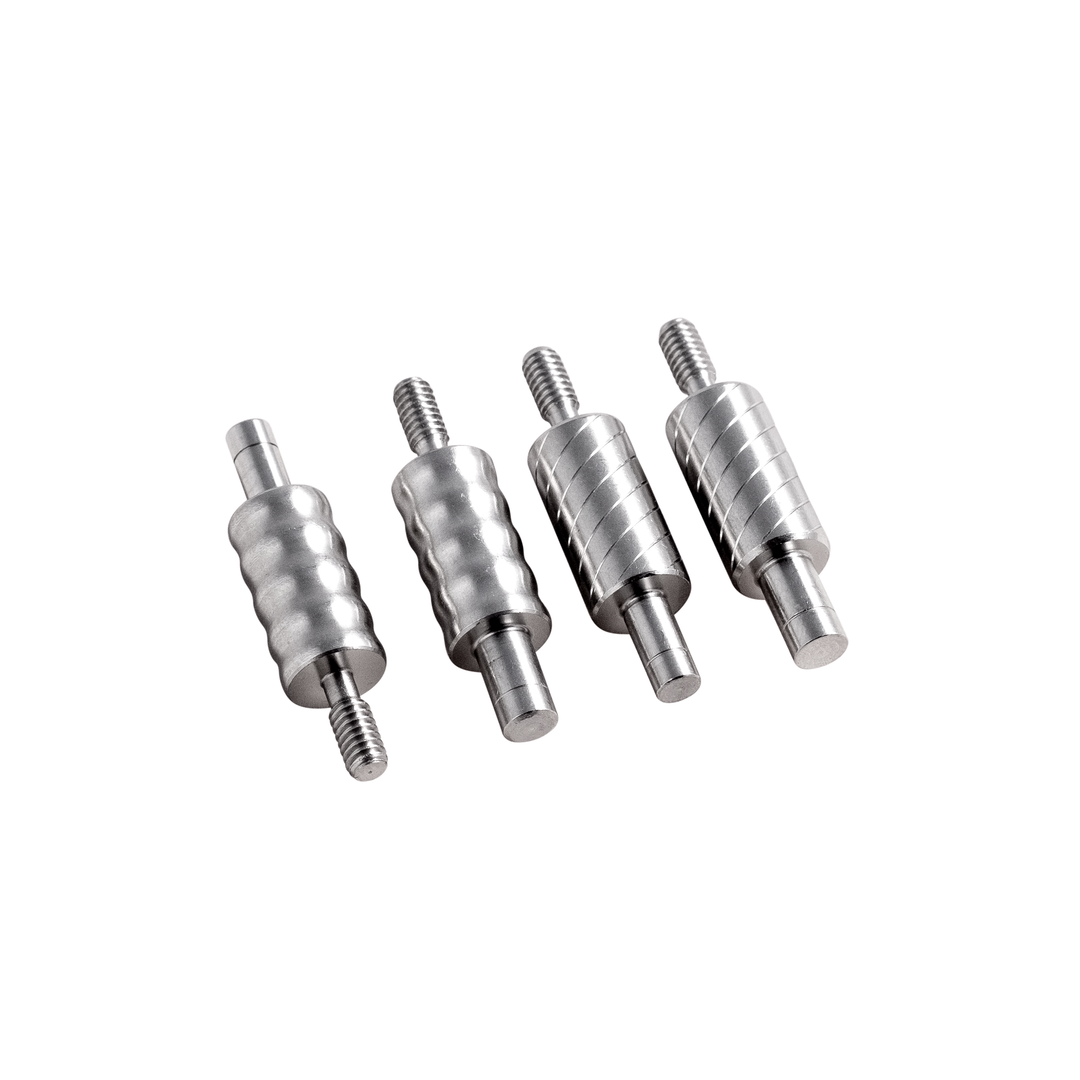

Like everything Burstfire, our Pocket uniformed is improved over rest on the market!
So whatβs diff? All pocket uniformer in the market are made way too small. Result is it creates a circular wobble when attempting to βuniformβ the pocket. Which results in more effort/time to cut and uniform the pocket, evenly.Β
our is made to the correct dimension, cutting the primer pockets at the correctly dimensions in both width and depth, effectively removing that wobble effect, and just enough that it does not remove any metal on the pocket wall.Β
Purpose: Uniform uneven primer pockets, to ensure reliable primer ignition, and/or to prevent the possibility of slam-fire from primer not being seated deep enough.
Another use case is to remove the protruding flash hole, caused by using incorrect decapping pin on smaller or undersizedΒ flash holes, causing flash hole to be punched outwards, and deformed.
Industry standard 8/32 thread can be attached to any prep tool handle, or atop a Case Prep Center.Β
Β

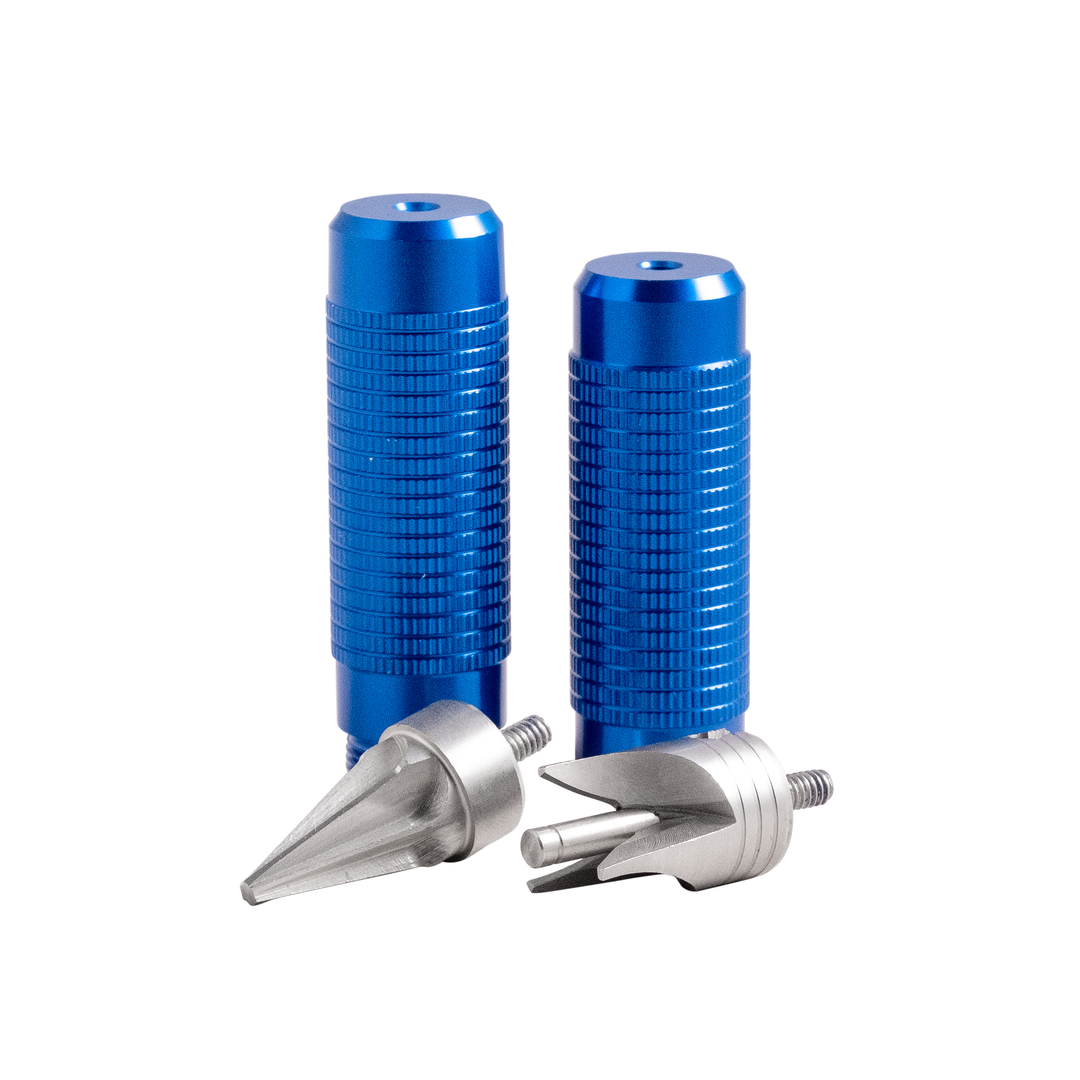

Burstfire - VLD Chamfer & Deburr Tool Set
Burstfire - VLD Chamfer & Deburr Tool Set
To chamfer and deburr your case mouth
Chamfer inside case mouth to smooth out rough inner edges from trimming, and allow for smooth bullet seating. Prevents shaving off bullet plating when seating.Β
Deburr outside case mouth, to remove rough edges / burr from case trimming process
Industry standard 8/32 threaded. Can fit into any prep tool handles, or case prep centers, such as theΒ Burstfire 2 in 1 Case Annealer & Prep Center
Β
Burstfire - Primer Pocket Go-Gauge Set
Never guess again if your primer pockets were properly reamed or swaged. Include large & small primer pocketΒ gauge
Enlarged body, curved / wave design for a secure grip to be held byΒ hand
It can alsoΒ be attached to an existing industry standard 8/32 threaded hand tool handle, to maximize comfort.
We all want a tight primer pocket, that will not loosen up before our brass fails. Especially if you use expensive brass.
UsingΒ small primer pocket as an example. Our small gauge is made to 0.1725. Variation for small primers is 0.1745 - 0.1755 in diameter. ***Majority of small primers will be 0.175.
We have found, a .175 primer, can be inserted in a .1725 pocket on a press, but may meet some resistance at .1755 (Will not work in most cases if hand priming. In this case simply set up the reamer / Swager to go just a tad bit further).Β
if you want the highest level of precision and control, this is it. But keep in mind there are variations from brand to brand, and lot to lot. Cup thickness is aΒ factor in if it will fit or how easily it will fit as well.Β
Burstfire Primer Pocket NO-GO Gauge Set:
No-Go Gauges are made .005 over max pocket dimensions. If the No-Go Gauge can be inserted, it indicates your primer pocket may be too loose for some primers. It is strongly recommended at that point to either recondition your pockets, or discard/recycle the case.Β
At times, the No-Go Gauge may be partially inserted into the primer pockets. That is NOT an indication of a loose primer pocket. It has to be fully inserted, without any resistance.Β
Β
Burstfire

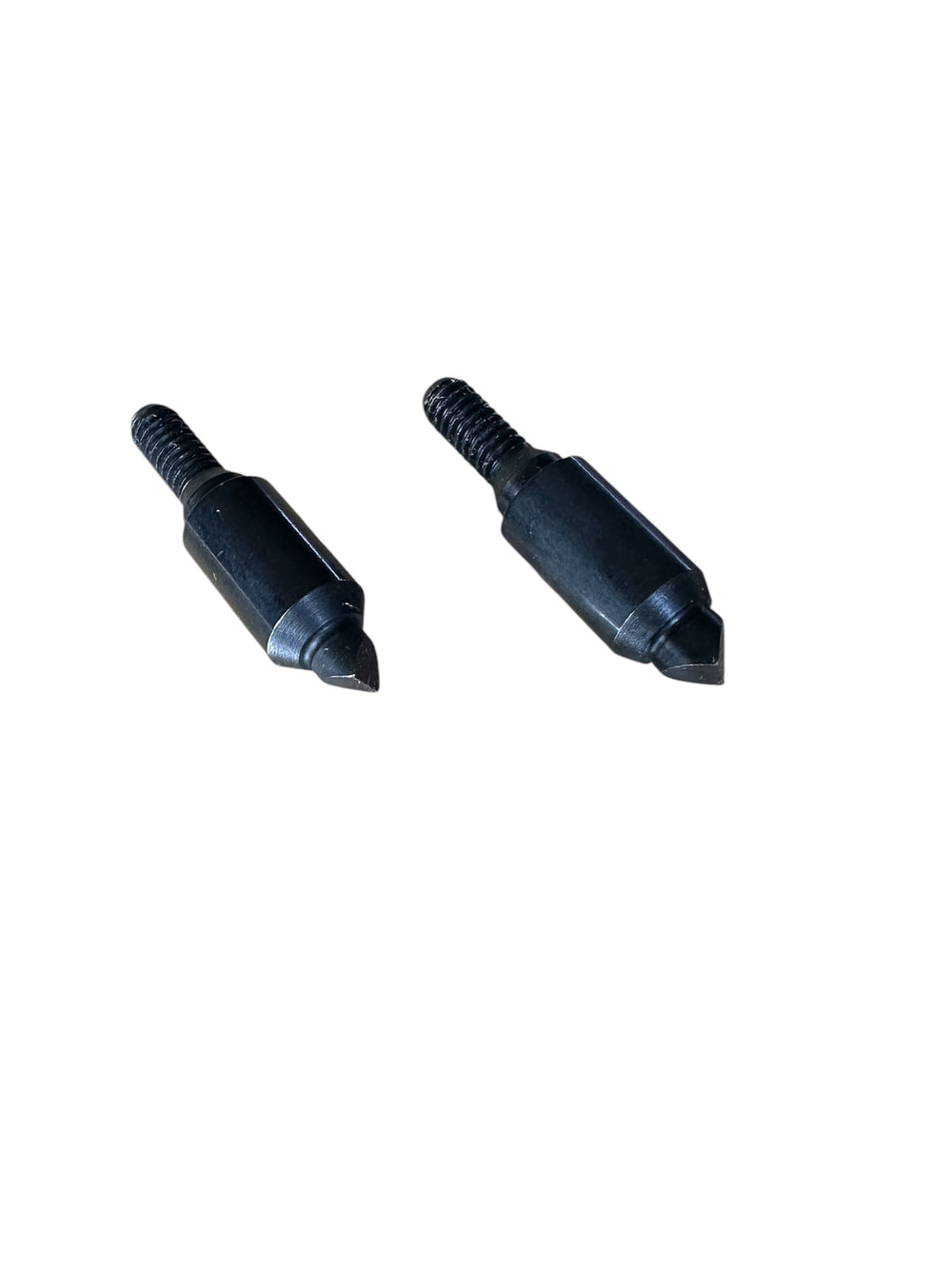

Burstfire - Ultimate Primer Pocket Reamer / Military Crimp Remover Set
Burstfire-CPT-ReamerSet
Regular price
$17.87
Burstfire - Ultimate Primer Pocket Reamer / Military Crimp Remover Set (Large & Small)
First of all, if you've used otherΒ tools in the past, you know the struggle of dull cutters that wonβt last long. We manufactured these with the highest quality material to ensure long term performance. You will appreciate the clean cuts / performance from our prep tools! And it comes with lifetime warranty!Β
*** Hate reaming / swaging? Burstfire Ultimate Small Primer Pocket Reamer is the easiest, fastest, and most effective solution on the market!
We redesigned and Improved vs others on the market. Normal reamers cut at 35-40 degree angle, which will require excessive metal to be cut for the crimp to be removed. BFG Reamers 80-85 degree angle, to SAAMI dimensions, and requires minimal cutting.
Cut radius for our tools is 0.0025 below standard primer dimensions. For small is 0.1730 and 0.209 for large, compared to 0.167 small and 0.202 large for most other products in the market (undersized). A quick βtap and goβ is all you need! It's like swaging, but better, and faster.
*****The reamer does NOT need to be inserted all the way into the primer pocket. Insert until you feel / hear the cutting, and it should be sufficient! (unless your preference if to open it up a bit more to assist in ease of priming using a hand primer). It is designed to be quick βtap and goβ, and is all you need! It's like swaging, but better, and faster.
****Best way to check correct / ideal primer pocket dimensions, is through the use of a Primer Pocket Go & No Gauge. We highly recommend. You can find them HEREΒ in our website.Β

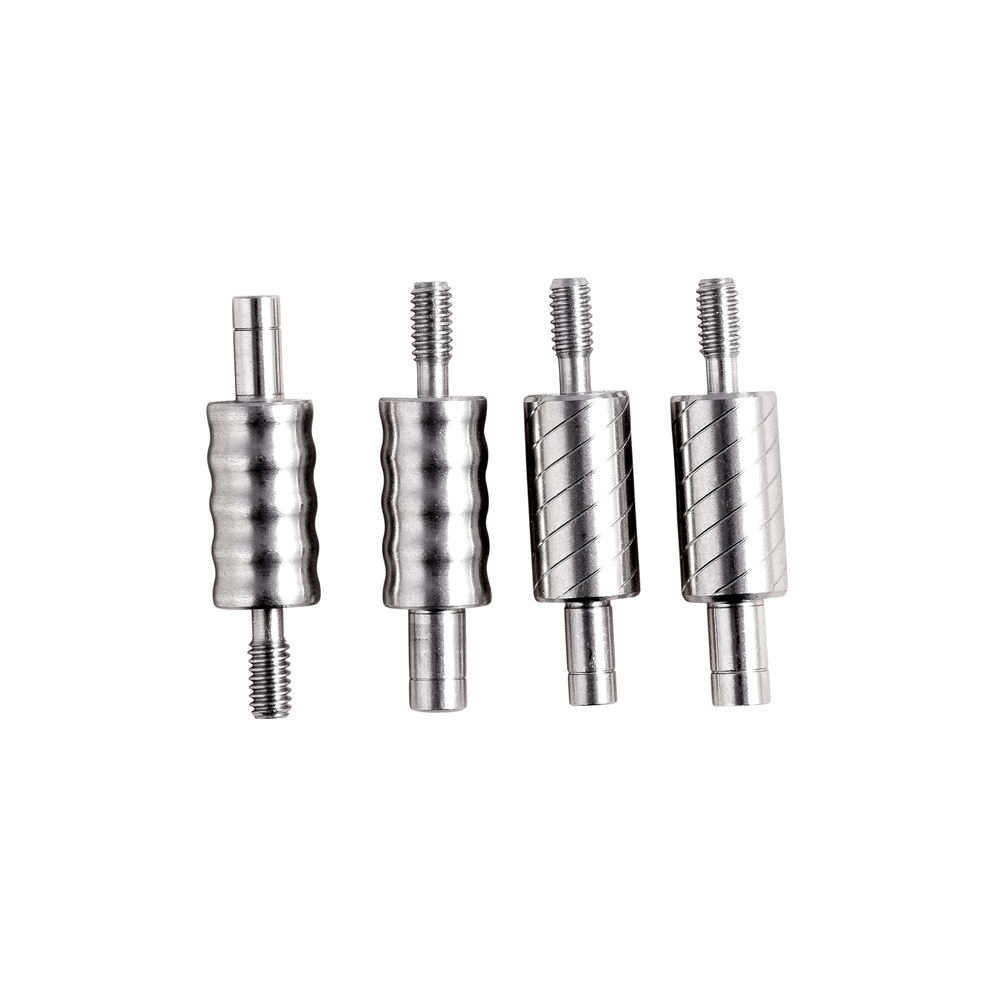

Burstfire - Primer Pocket Uniformer Set (Large & Small)
Like everything Burstfire, our Pocket uniformed is improved over rest on the market!
So whatβs diff? All pocket uniformer in the market are made way too small. Result is it creates a circular wobble when attempting to βuniformβ the pocket. Which results in more effort/time to cut and uniform the pocket, evenly.Β
our is made to the correct dimension, cutting the primer pockets at the correctly dimensions in both width and depth, effectively removing that wobble effect, and just enough that it does not remove any metal on the pocket wall.Β
Purpose: Uniform uneven primer pockets, to ensure reliable primer ignition, and/or to prevent the possibility of slam-fire from primer not being seated deep enough.
Another use case is to remove the protruding flash hole, caused by using incorrect decapping pin on smaller or undersizedΒ flash holes, causing flash hole to be punched outwards, and deformed.
Industry standard 8/32 thread can be attached to any prep tool handle, or atop a Case Prep Center.Β
BurstFire
Burstfire - Primer Pocket Go & No Go Gauge Sets
Burstfire-CPT-PPG-GO
Regular price
$13.87
Burstfire - Primer PocketΒ Gauge SetΒ
GO GAUGES:
Never guess again if your primer pockets were properly reamed or swaged.Β Β Include large & small primer pocketΒ gauge.Β
Enlarged body, curved (go gauge) / Swirl (no-go) design for a secure grip to be held byΒ hand.
It can alsoΒ be attached to an existing industry standard 8/32 threaded hand tool handle, to maximize comfort.
We all want a tight primer pocket, that will not loosen up before our brass fails. Especially if you use expensive brass.
UsingΒ small primer pocket as an example. Our small gauge is made to 0.1725. Variation for small primers is 0.1745 - 0.1755 in diameter. ***Majority of small primers will be 0.175.
We have found, a .175 primer, can be inserted in a .1725 pocket on a press, but may meet some resistance at .1755 (Will not work in most cases if hand priming. In this case simply set up the reamer / Swager to go just a tad bit further).Β
***Proper use of gauge: Make sure the gauge can be freely inserted into the pocket, without sticking / without requiring any force to push it all the way in, or pull all the way out.Β
NO-GO GAUGES:
No-Go Gauges are made .005 over max pocket dimensions. If the No-Go Gauge can be inserted, it indicates your primer pocket may be too loose for some primers. It is strongly recommended at that point to either recondition your pockets, or discard/recycle the case.Β
At times, the No-Go Gauge may be partially inserted into the primer pockets. That is NOT an indication of a loose primer pocket. It has to be fully inserted, without any resistance.Β
If you want the highest level of precision and control, this is it. But keep in mind there are variations from brand to brand, and lot to lot. Cup thickness is aΒ factor in if it will fit or how easily it will fit as well.Β
Chamfer inside case mouth to smooth out rough inner edges from trimming, and allow for smooth bullet seating. Prevents shaving off bullet plating when seating.Β
Deburr outside case mouth, to remove rough edges / burr from case trimming process
Industry standard 8/32 threaded. Can fit into any prep tool handles, or case prep centers, such as theΒ Burstfire 2 in 1 Case Annealer & Prep Center
Threaded handle is included.
BurstFire
Burstfire - Ultimate Primer Pocket Reamer (Crimp Remover) & Primer Pocket Uniformer Set
Burstfire-CPT-UNI-REAM
Regular price
$27.87
Burstfire - Ultimate Primer Pocket Reamer Set
First of all, if you've used these tools in the past, you know the struggle of dull cutters. We manufactured these with the highest quality material to ensure long term performance. You will appreciate the clean cuts / performance from our tools
*** Hate reaming / swaging? Burstfire Ultimate Small Primer Pocket Reamer is the easiest, fastest, and most effective solution on the market!
We redesigned and Improved vs others on the market. Normal reamers cut at 35-40 degree angle, which will require excessive metal to be cut for the crimp to be removed. BFG Reamers 80-85 degree angle, to SAAMI dimensions, and requires minimal cutting.d
Cut radius for our tools is 0.0025 below standard primer dimensions. For small is 0.1730 and 0.209 for large, compared to 0.167 small and 0.202 large for most other products in the market (undersized).
*****The reamer does NOT need to be inserted all the way into the primer pocket. Insert until you feel / hear the cutting, and it should be sifficient! (unless your preference if to open it up a bit more to assist in ease of priming using a hand primer). It is designed to be quick βtap and goβ, and is all you need! It's like swaging, but better, and faster.
****Best way to check correct / ideal primer pocket dimensions, is through the use of a Primer Pocket Go & No Gauge. We highly recommend. You can find them HEREΒ in our website.Β
Like everything Burstfire, our Pocket uniformed is improved over rest on the market!
So whatβs diff? All pocket uniformer in the market are made way too small. Result is it creates a circular wobble when attempting to βuniformβ the pocket. Which results in more effort/time to cut and uniform the pocket, evenly.Β
our is made to the correct dimension, cutting the primer pockets at the correctly dimensions in both width and depth, effectively removing that wobble effect, and just enough that it does not remove any metal on the pocket wall.Β
Purpose: Uniform uneven primer pockets, to ensure reliable primer ignition, and/or to prevent the possibility of slam-fire from primer not being seated deep enough.
Another use case is to remove the protruding flash hole, caused by using incorrect decapping pin on smaller or undersizedΒ flash holes, causing flash hole to be punched outwards, and deformed.
Industry standard 8/32 thread can be attached to any prep tool handle, or atop a Case Prep Center.Β
Β
What's included in each set?:
Large & Small Reamer & Uniformer Set - Includes both LARGE AND SMALL primer pocket reamer & uniformer (4 pcs)
Large Reamer & Uniformer Set - Include one each of LARGE reamer & uniformer (2 pcs)
SmallΒ Reamer & Uniformer Set - Include one each ofΒ SMALL reamer & uniformer (2 pcs)
Burstfire

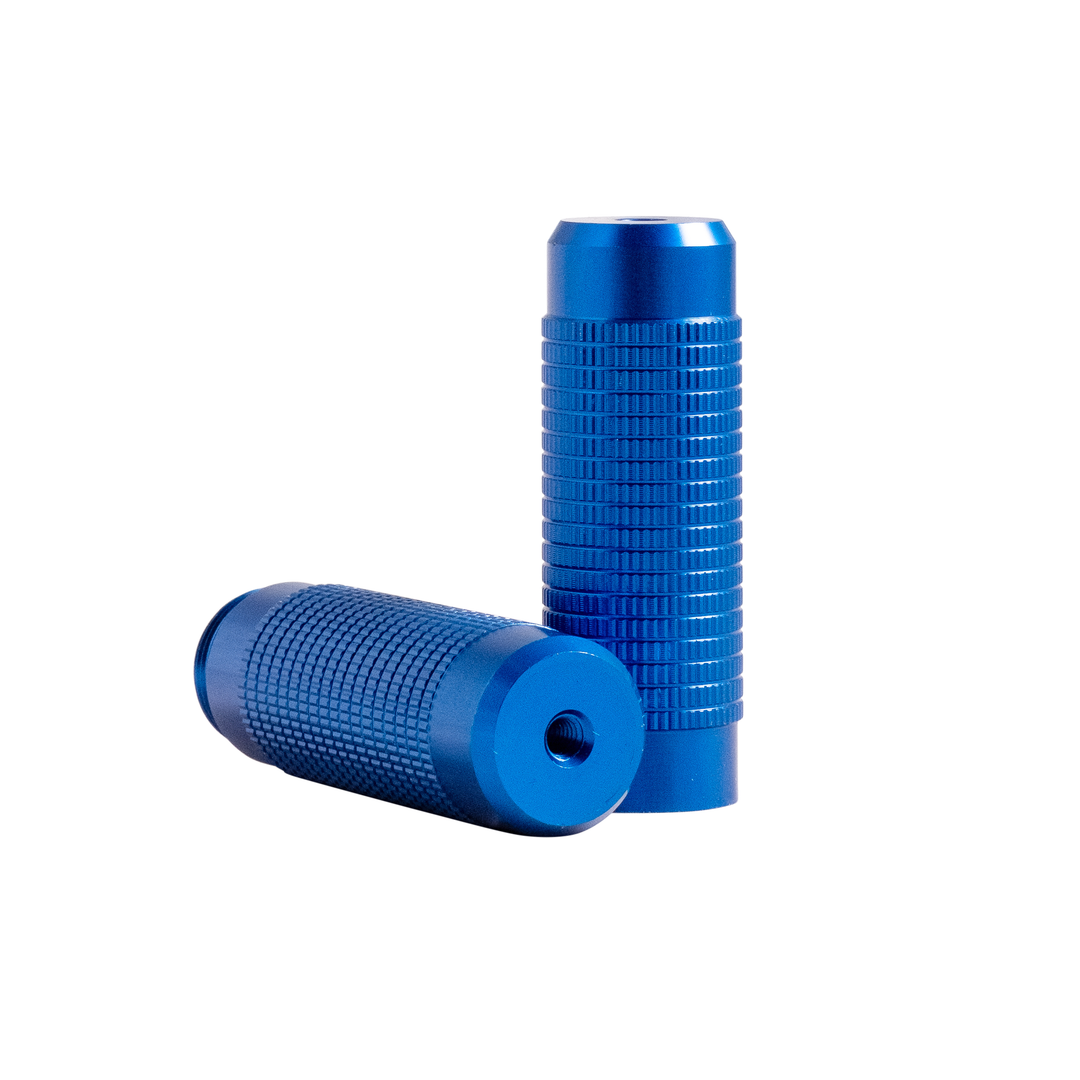

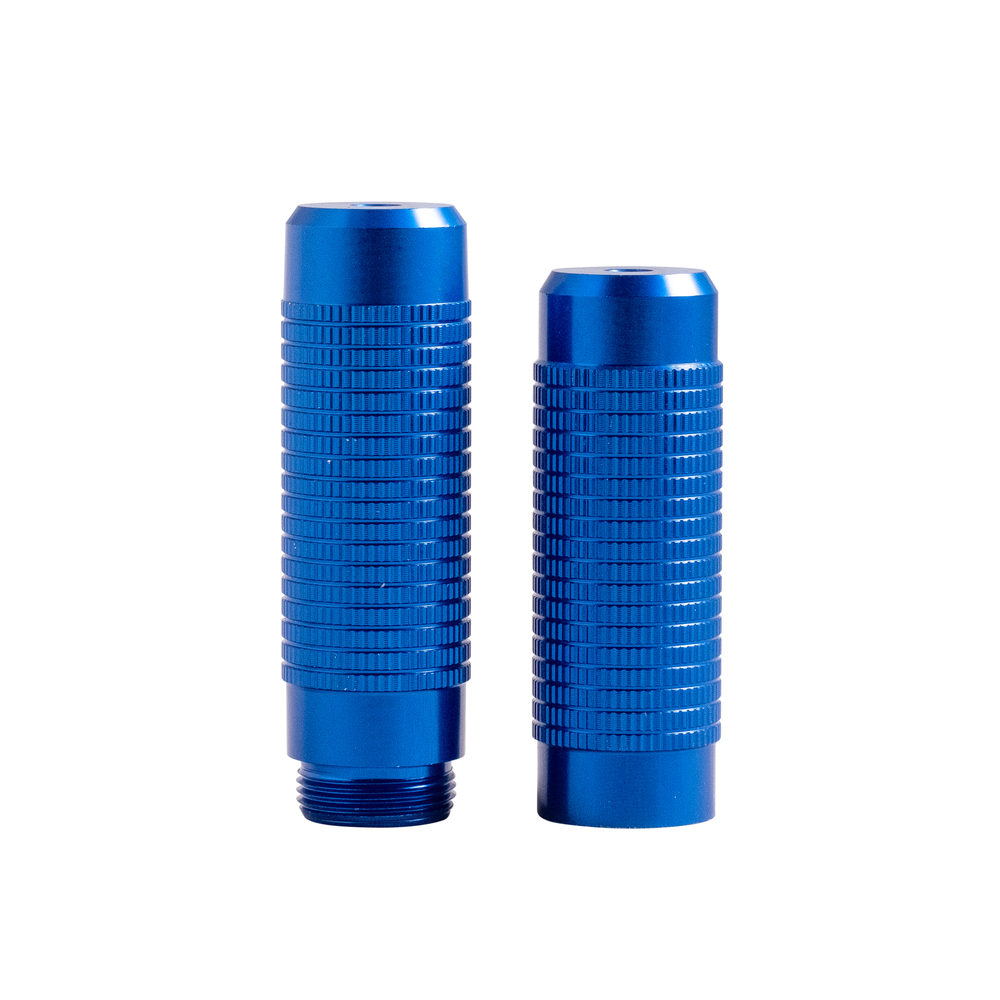

Case Prep Tool - Aluminum Threaded Handle Only
Regular price
$8.87
Handle for 8/32 threaded case prep tools.Β
Can attach prep tools on both ends
Handle can be split into 2 halvesΒ
Center of handle can be used as storage for small prep tool attachments
Solid aluminum constructionΒ
Compact, Ergonomic design.Β
Whatβs included?
2 halves of tool handle.
*Case prep tool bits are sold separatelyΒ
BurstFire

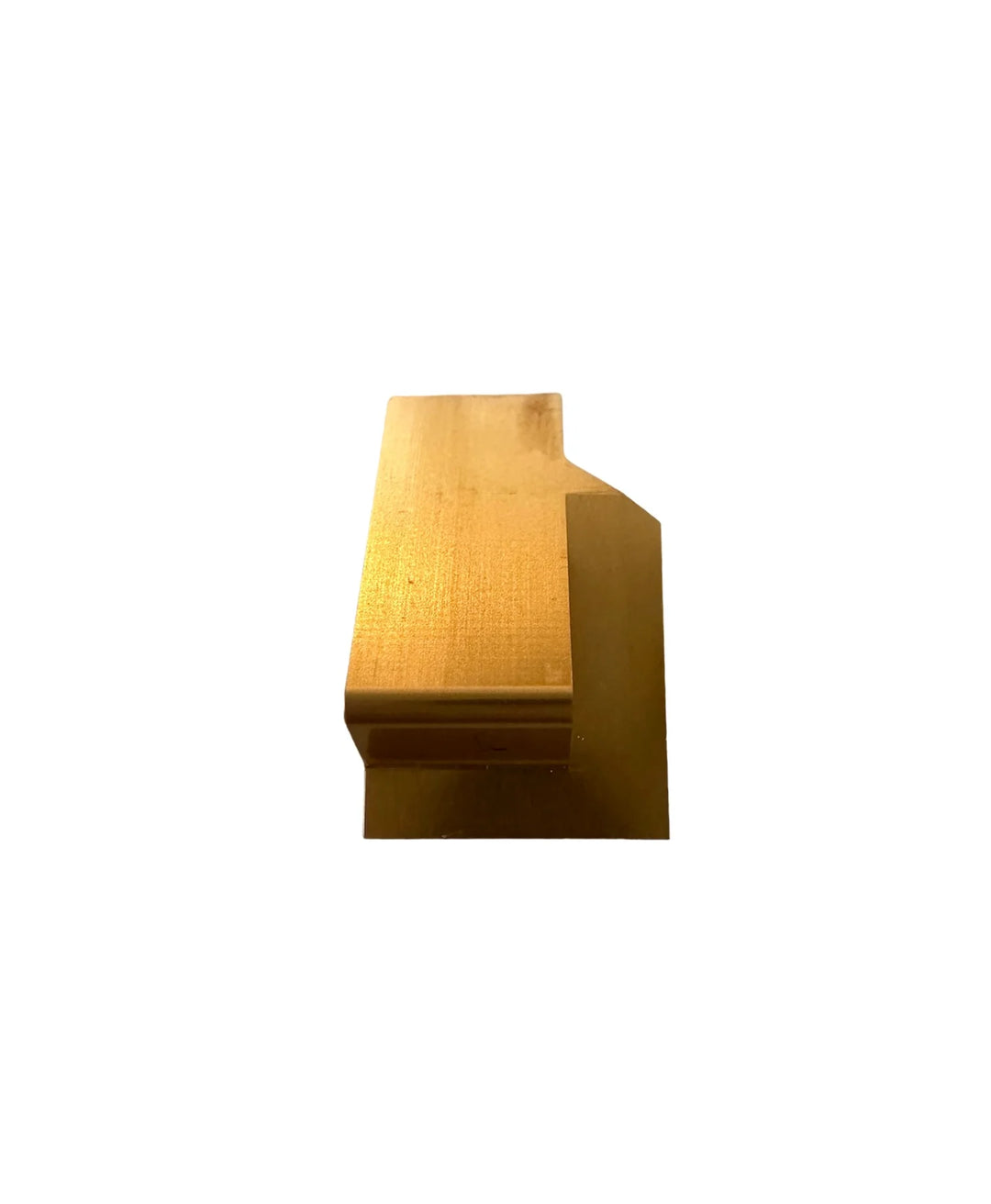

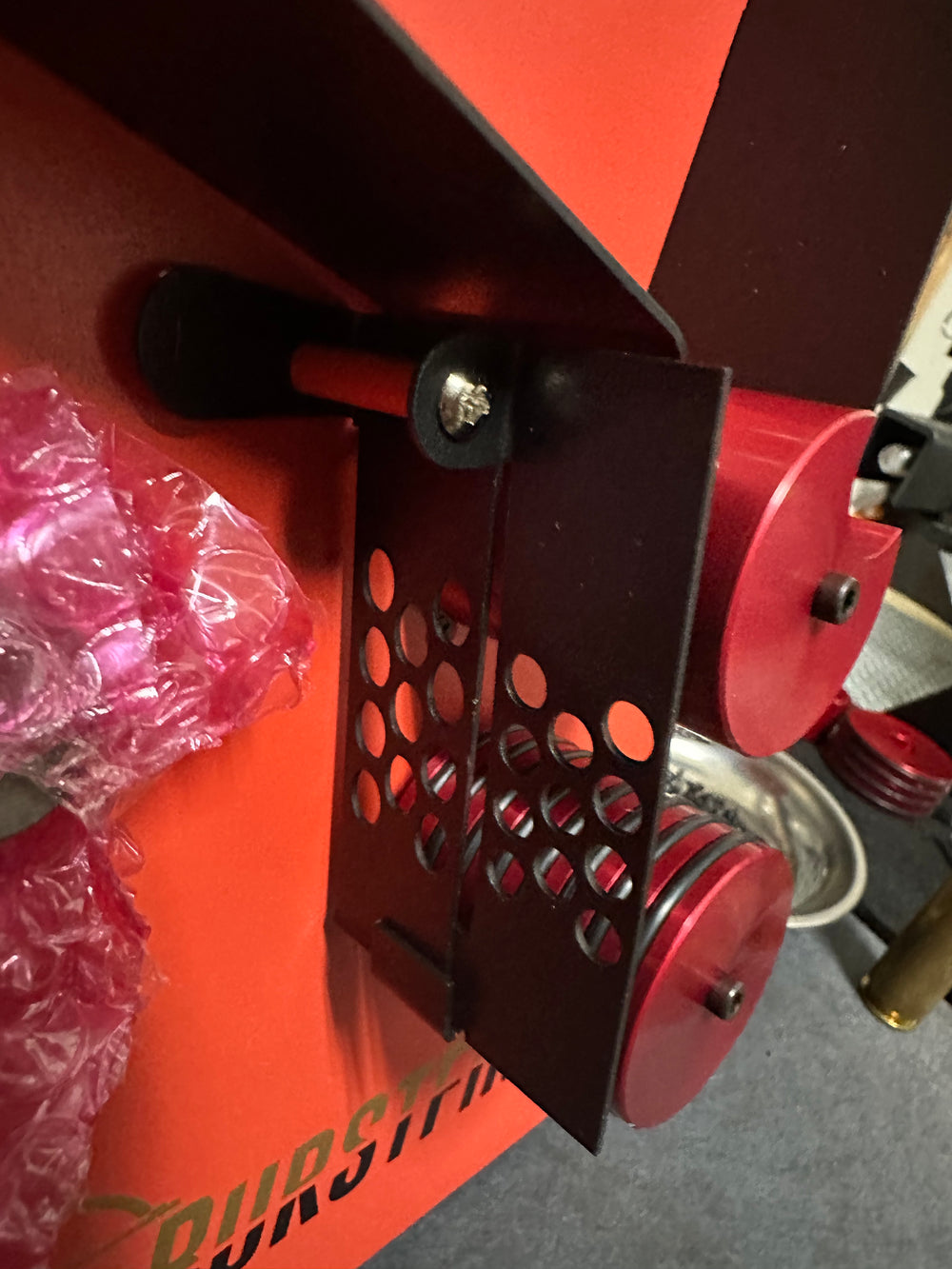

Toolless - Short Case Feed Ramp
Burstfire-CFR
Regular price
$16.87

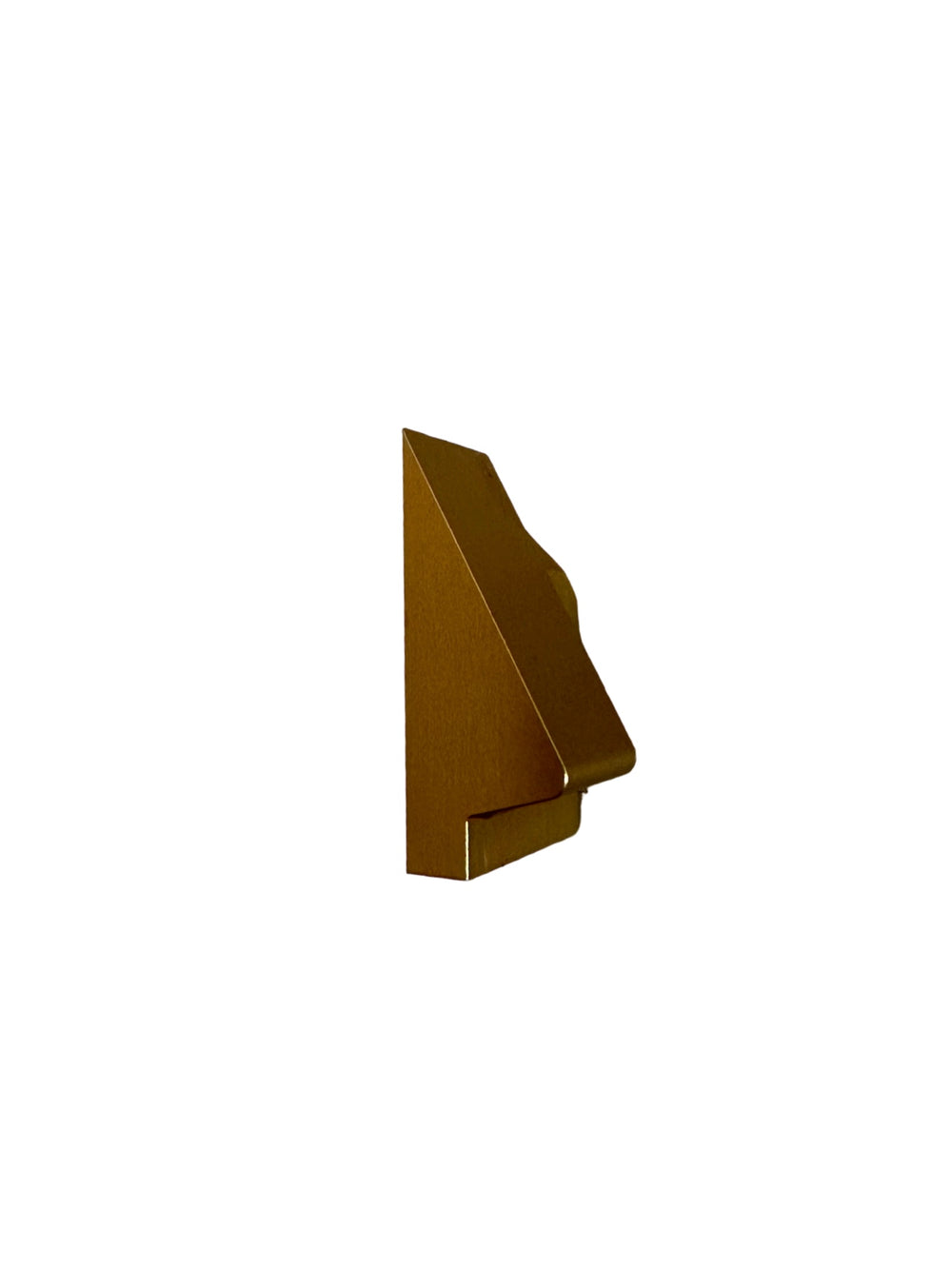

Toolless - Short Case Feed Ramp
***First and foremost, this is FREE for existing customs who owns a Burstfire Annelaer, orΒ any new customers.Β
The primary goal of this adapter is to accommodate pistol cartridges such as 38/357, 44-40, 45 colt etc that were previously too short. You do NOT need this for rifle cases. However, it does simplify torch adjustment for the rifle cases.Β
βββββ
AttachedΒ between the two wheels to accommodate short cases such as 38/357, 44 mag, 44-40, 300 blkout, 6mm BR.
The feed ramp is magnetic, offeringΒ a simple, toolless adapter that can be quickly attached and removed, with the purpose to further expose the necks of the shorter cases. Simplifying torch adjustment and annealing process.Β
They are FREEΒ for ALL existing customers
To redeem for a FREE set,Β use coupon code: SHORTY
If you purchased the annealer on:
Burstfireguns.com - You must redeem using your registered account / email, for us to track your proof of purchase, or your order will be canceled.
Amazon/eBay/GunBroker - Please include in the order note: name on order, order #, and date & site purchased. Coupon code redeemed without order info will be canceled.
***One per unit. If you ordering multiple, please provide order info for each.Β
*****Link to video instructions here:
https://youtu.be/sJ6SxYAvnrg
Burstfire Parts
Burstfire - Annealer - Aluminum Upper Wheel - SMALL - For 17/22 hornet
Regular price
$16.87
Burstfire - Annealer - AluminumΒ Upper Wheel - Β Small - for 17/22 hornet*
Red Anodized 6061 AirCraft Grade Aluminum
Allows proper feeding of small cases such as 22 hornet, or 5.7x28
An add-on for Gen 1 or Gen 2 units. Not included with annealer.Β
Burstfire Parts
Burstfire - Annealer - Aluminum Upper Wheel - STANDARD
BFG-Top-STD-RED
Regular price
$16.87
Burstfire - Annealer - Aluminum Rotation Wheel -Β STANDARD
Red Anodized 6061 Air Craft Grade Aluminum
Included with all GEN 2 Units
Will fit cases from 300 blkout up to 30-06
****If you are buying a GEN 2, they are already included free of charge.Β
Burstfire Parts
Burstfire - Annealer - Aluminum Upper Wheel - MAGNUM
***Can be fitted to both Gen 1 and Gen 2 machines, as well asΒ other 3rd party annealers out there. The kit includes a 6mm drill bit, and all mounting hardware.Β
An upgrade for Gen 1 machines, replacingΒ the standard turnbuckle torch mount.Β
Tool less adjustments. Improved efficiency! - Does not require tools to adjust the position of the torch when changing calibers. Simply Point and Set by tightening the 2 finger tabs to secure it in position!
Improved torch adjustability / position, and flame control.
BurstFire
Neck Tension Gauge
Regular price
$14.87
Β
NEW PRODUCT RELEASE! In stock ready to ship!
***Introducing the Burstfire Neck Tension Gauge - The essential tool for any serious reloading enthusiast. This device accurately measures the amount of tension inside the neck of your brass cases, ensuring consistent and precise neck tensionΒ every time.
Neck tension gauges are handy tools for reloaders who want to achieve consistent and accurate bullet seating. They allow you to measure the inside diameter of your case necks. By using neck tension gauges, you can avoid excessive or insufficient neck tension, which can affect the accuracy and performance of your ammunition.
One is the key benefits ofΒ Β annealing brass cases is to maintain a consistent neck tension in order to achieve optimal performance and accuracy. The Neck Tension Gauge allows you to easily measure the amount of tension in your brass cases, ensuring that each case isΒ precisely what it should be.Β
Burstfire neck tension gauges are easy to use and come in different 7Β sizes to suit your reloading needs. They have 5 stepped diameters metal tool. You simply insert the tool into the neck of your sized case and slide it until one of the diameters fits snugly. If it stops at the first notch (from bottom), you have 0.001 neck tension, 2nd notch 0.002, and up to 0.005.Β
With its simple design and easy-to-read gauge, the Neck Tension Gauge is an essential tool for any reloader or shooter who demands the highest level of accuracy and consistency from their ammunition.
If you are serious about reloadingΒ and want to achieve the best possible performance from your ammunition, the Neck Tension Gauge is a must-have tool. With its precision measurement capabilities and rugged stainless steel construction, it will provide you with years of reliable service and help you to achieve the ultimate level of consistency and accuracy in your shooting experience.Β
ββββββββ
Burstfire Neck Tension Gauges is a 5 Step Gauge, in 0.001 increments starting at .001 below bullet dimension. Example: .224 starts at .223 at the bottom, and up to .219. For precision loading, you typically look for 0.001 neck tension. So your case should all stop on the first notch of the gauge (from bottom). If it bottoms out, you likelyΒ donβt have enough neck tension. If you canβt insert it on top one (0.219), it means you have more than 0.005 and likely too much neck tension.Β
.224 Gauge - 0.219 - 0.223
.243Β Gauge - 0.242 - 0.238
.264Β Gauge - 0.263 - 0.259
.277 Gauge - 0.276 - 0.272
.284 Gauge - 0.283 - 0.279
.308Β Gauge - 0.307 - 0.303
.338 Gauge - 0.337 - 0.333
***May have variation ofΒ 0.0003β or lessΒ
Β
Sign up and save
Subscribe to get special offers, free giveaways, and once-in-a-lifetime deals.
